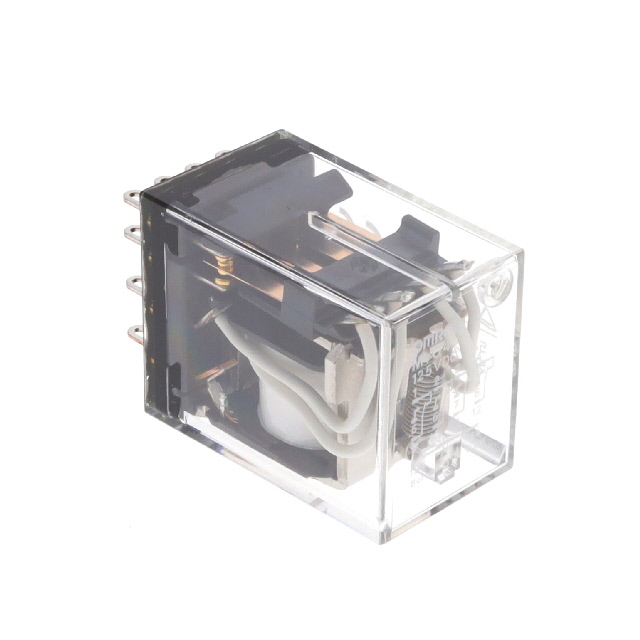

MYQ4 DC125

MYQ4 DC125 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE 4PDT 1A 125V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for MYQ4 DC125

• Description：RELAY GEN PURPOSE 4PDT 1A 125V
• Series：MY
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：125VDC
• Contact Form：4PDT (4 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：250VA, 125W
• Coil Current：7.2 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：100 VDC
• Must Release Voltage：12.5 VDC
• Operate Time：20 ms
• Release Time：20 ms
• Operating Temperature：-55°C ~ 60°C
• Contact Material：Silver (Ag), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for MYQ4 DC125
