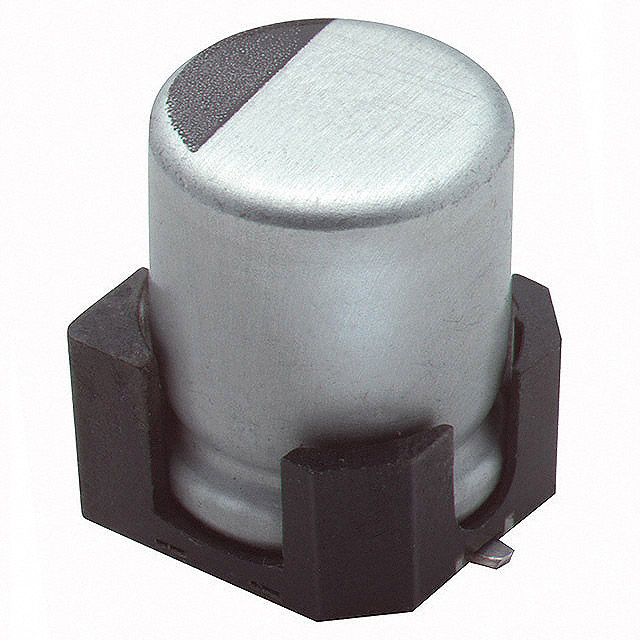

MZA25VC47RMF61TP

MZA25VC47RMF61TP is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 47UF 20% 25V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MZA25VC47RMF61TP

• Description：CAP ALUM 47UF 20% 25V SMD
• Series：MZA
• Mfr：Chemi-Con
• Package：Tape & Reel (TR)
• Capacitance：47 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：240 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.228" (5.80mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：360 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for MZA25VC47RMF61TP
