NBPLANS150PAUNV

Pressure Sensors Transducers Overview

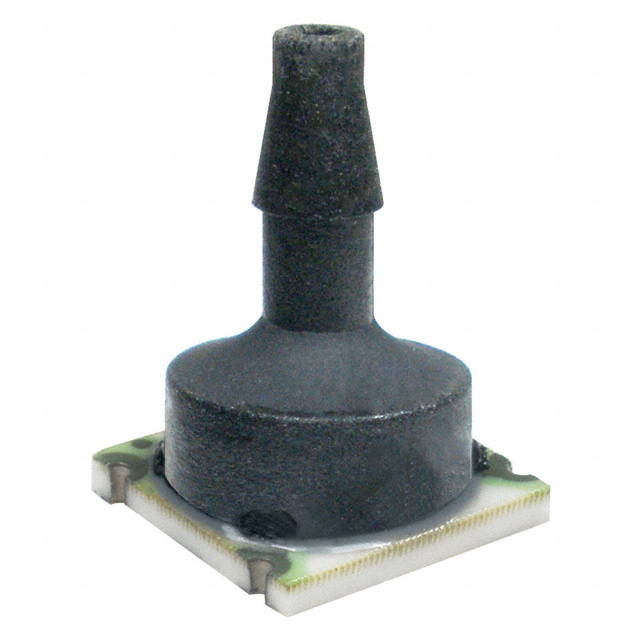

The NBPLANS150PAUNV is a Honeywell TruStability absolute pressure sensor designed for board-mount applications. It features a leadless SMD package with a single axial barbed port, measuring 0.75 inches (1.91mm) in diameter. The device operates within a range of 0 to 150 PSIA (0 to 1034 kPa) and delivers an analog output of 0 mV to 130 mV at 5V excitation. It supports supply voltages from 1.8V to 12V, draws 1.5mA current, and maintains accuracy within 0.25%. Operating temperatures span from -40°C to +125°C.

Pressure Sensors Transducers Feature Summary

• Leadless surface mount design for automated assembly
• Single axial barbed port for direct tubing connection
• Integrated temperature compensation for stability

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC pressure monitoring
• Medical gas equipment

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'S' indicates the 0.75-inch barbed port configuration against your mechanical constraints. Confirm RoHS compliance status via official documentation. Check for moisture sensitivity level requirements during storage and reflow soldering processes to ensure component integrity.

Pressure Sensors Transducers Selection Notes

Select this model for high-pressure absolute measurements requiring a compact footprint. Ensure the 150 PSIA range matches system pressures. Verify that the analog bridge output interface is compatible with downstream signal conditioning circuits. Consider the wide operating temperature range for harsh environments.

Pressure Sensors Transducers Part Context

This part belongs to the NBP series of silicon piezoresistive pressure sensors. It utilizes Honeywell's TruStability technology for enhanced long-term stability. The series offers various port configurations and pressure ranges tailored for diverse industrial sensing needs.

Pressure Sensors Transducers Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Honeywell engineering for cross-reference options if this component is obsolete or unavailable.
