NFC Antenna

Antennas RF Overview

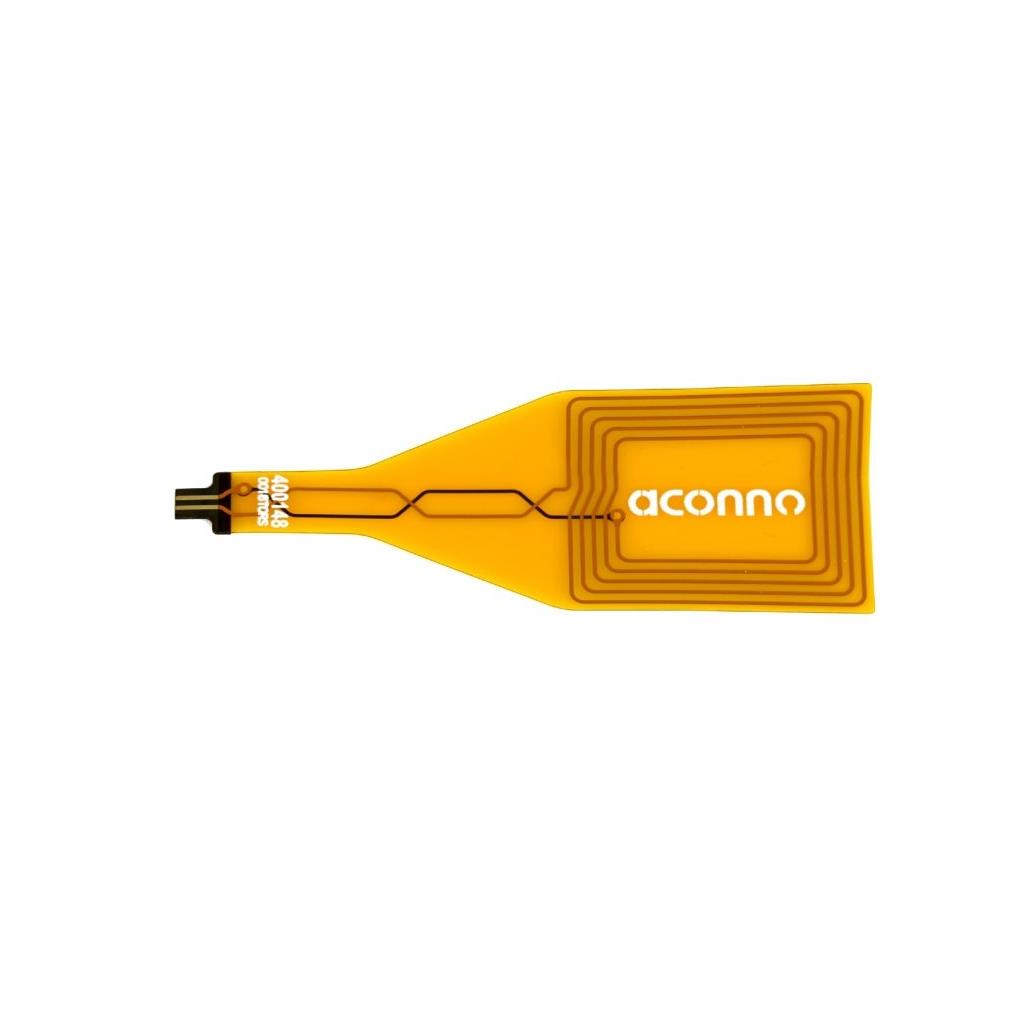

The Aconno NFC Antenna is a passive RFID/NFC antenna designed for 13.56 MHz operation. It features an NFC-flat wound inductor structure and utilizes connector mount termination. The component supports maximum power handling of 100 W. It is engineered to function with specific Aconno NFC products, including the ACD52832 and ACD5284 modules. The antenna facilitates standard NFC protocols and operates within a single frequency band centered at 13.56 MHz.

Antennas RF Feature Summary

• Supports Card emulation, P2P, and Reader/writer modes
• Utilizes NFC-flat wound inductor technology
• Designed for integration with specific Aconno NFC modules

Antennas RF Applications

• Integration with Aconno ACD52832 NFC products
• Integration with Aconno ACD5284 NFC products
• NFC-enabled device communication systems

Antennas RF Procurement Notes

Verify that the specific part number matches the required connector type and mechanical style for your PCB layout. Confirm compatibility with the target Aconno module, such as ACD52832 or ACD5284, as this antenna is specifically tested and designed for these units. Ensure the 13.56 MHz frequency range aligns with your system requirements before procurement.

Antennas RF Selection Notes

Select this antenna when using Aconno NFC modules like the ACD52832 or ACD5284, as it is explicitly designed for these platforms. Consider the connector mount style and passive antenna type for your design constraints. Verify that the 100 W maximum power rating meets your application's electrical needs. This component is suitable for applications requiring card emulation, peer-to-peer, or reader/writer functionality.

Antennas RF Part Context

This component belongs to the RF Antennas category under Bluetooth standards, operating at 13.56 MHz. It is classified as a passive antenna for RFID/NFC applications. The product is currently active and manufactured by Aconno. It serves as a critical interface for NFC communication in devices utilizing compatible Aconno wireless modules.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. As this antenna is specifically designed and tested for Aconno modules like ACD52832 and ACD5284, alternative antennas may require re-verification of impedance matching and protocol support.
