NGCM7020US0R915G1TRF

Antennas RF Overview

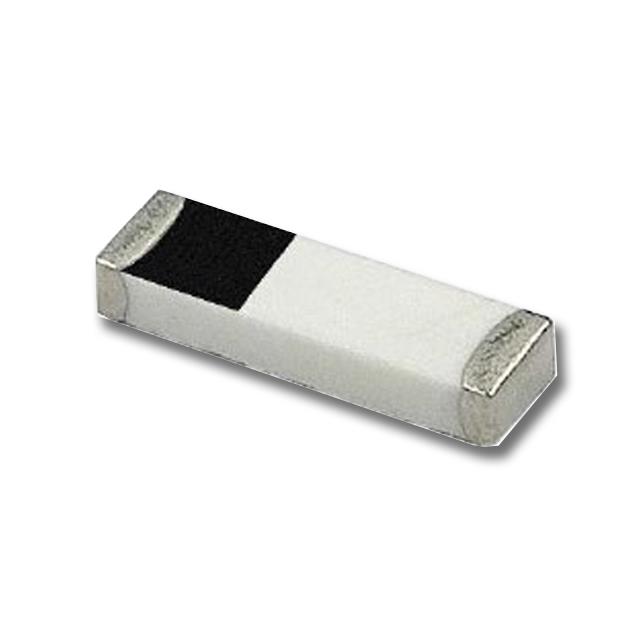

The NGCM7020US0R915G1TRF is a ceramic chip antenna manufactured by NIC Components Corp, designed for operation at the 915 MHz ISM frequency band. It utilizes a surface-mount technology (SMT) package with dimensions of 7.0 mm by 2.0 mm. The component is engineered for low-profile integration into compact electronic assemblies. It supports soldering processes compatible with standard reflow techniques, ensuring reliable attachment to printed circuit boards without requiring additional mechanical fasteners.

Antennas RF Feature Summary

• Optimized radiation performance at 915 MHz
• Compact 7020 surface-mount form factor
• Compatible with standard reflow soldering profiles

Antennas RF Applications

• LoRa wireless communication modules
• LPWAN device antennas
• ISM band industrial sensors

Antennas RF Procurement Notes

Verify that the specific part number matches the required 915 MHz frequency and 7020 package size. Confirm compliance with RoHS directives and ensure the supplier provides valid traceability documentation for the ceramic material composition. Check for any specific handling requirements related to the fragile ceramic substrate during storage and assembly.

Antennas RF Selection Notes

Select this component when a low-profile, cost-effective solution is required for 915 MHz applications. Consider the physical constraints of the 7020 footprint against available board space. Evaluate the antenna's impedance matching characteristics against the target RF front-end to ensure optimal signal transmission efficiency within the intended ISM band environment.

Antennas RF Part Context

This antenna belongs to the NGCM series of ceramic chip antennas from NIC Components Corp. These components are specifically developed for short-range wireless applications operating in unlicensed industrial, scientific, and medical bands. The series offers various frequencies and package sizes to accommodate diverse design requirements for portable and fixed wireless devices.
