NRVTS15100PFST3G

Single Diodes Overview

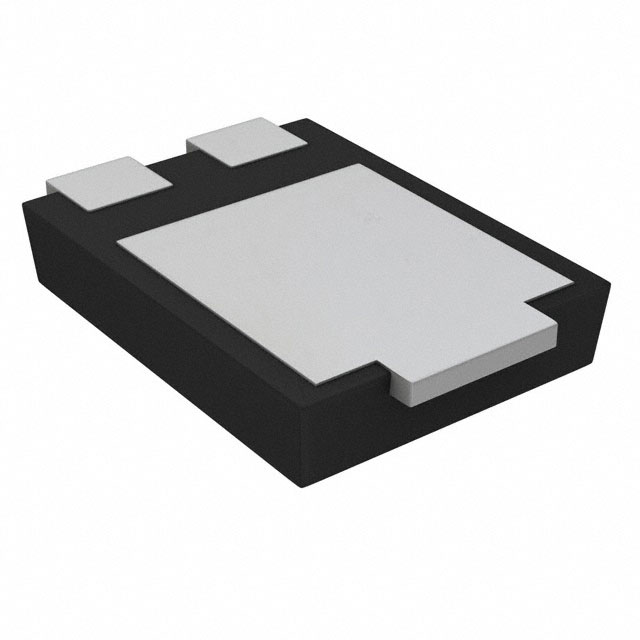

The NRVTS15100PFST3G is a Schottky Barrier Rectifier manufactured by onsemi, utilizing trench-based technology. It features a single diode configuration housed in an SMC (DO-214AB) surface-mount package. The device supports a maximum average forward rectified current of 15 A and withstands a repetitive peak reverse voltage of 100 V. Key electrical characteristics include a low forward voltage drop and minimal reverse leakage current, ensuring high efficiency. It operates within a junction temperature range from -65°C to +175°C and meets AEC-Q101 automotive qualification standards for reliability.

Single Diodes Feature Summary

• Trench-based Schottky barrier technology for enhanced performance
• Automotive-grade reliability with AEC-Q101 qualification
• Extended operating junction temperature up to 175°C
• Low forward voltage drop for improved power efficiency

Single Diodes Applications

• Automotive DC-DC converter circuits
• High-efficiency power supply rectification
• Freewheeling diodes in inductive load switching
• Reverse polarity protection in vehicle electronics

Single Diodes Procurement Notes

Verify the specific suffix 'P' against the official datasheet to confirm package or tape-and-reel variations. Confirm RoHS compliance status and material composition declarations via manufacturer documentation. Ensure the ordering part number matches the required packaging format. Cross-reference the AEC-Q101 qualification level with system requirements. Validate lead times and availability directly with authorized distributors.

Single Diodes Selection Notes

Select this component for applications requiring robust automotive-grade Schottky rectification with high current handling. The 15 A rating and 100 V breakdown voltage suit medium-power DC conversion tasks. The SMC package facilitates automated surface-mount assembly. Consider the thermal resistance and forward voltage characteristics for heat dissipation planning. Ensure the reverse leakage current specifications meet the standby power constraints of the design.

Single Diodes Part Context

This device belongs to onsemi's NRVTS series of trench Schottky rectifiers designed for high-efficiency power management. The series targets automotive and industrial markets demanding reliable rectification under harsh conditions. The trench technology differentiates it from standard planar Schottky diodes by offering lower forward voltage and better thermal stability. It complements other components in power conversion modules where low loss and high speed are critical.

Single Diodes Replacement Considerations

Check for direct pin-compatible alternatives within the same NRVTS family with adjusted current or voltage ratings. Verify that any substitute maintains the SMC (DO-214AB) package outline and thermal characteristics. Ensure the replacement also holds AEC-Q101 qualification if used in automotive contexts. Compare forward voltage and reverse leakage specs to guarantee equivalent circuit performance.
