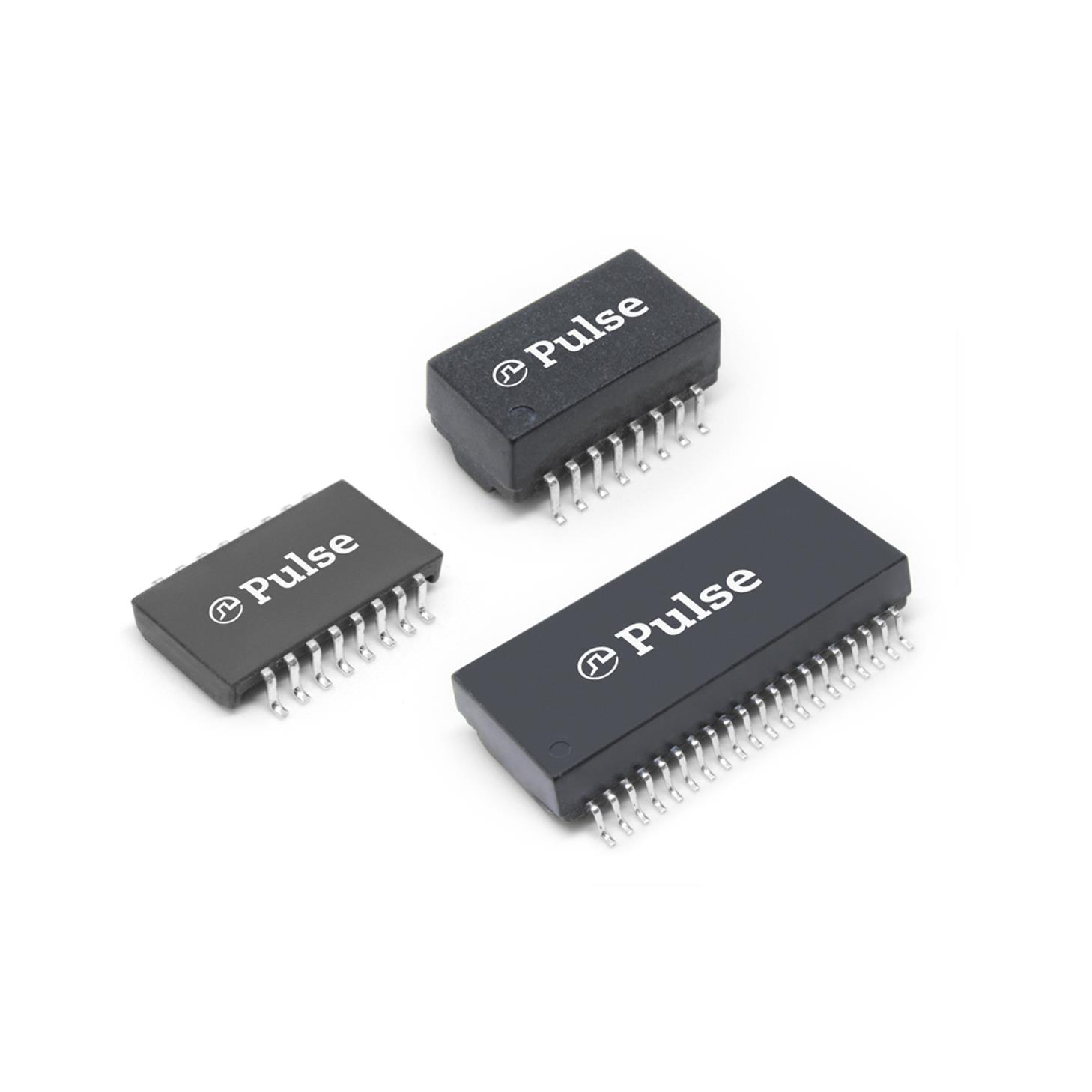

NS0013 LF

$3.04

Description：MDL SMD 10/100 SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c95829a4673f Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NS0013 LF is listed in the Pulse Transformers range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is MDL SMD 10/100 SINGLE PORT N/A. Review the specifications below when checking this part for your BOM.

Pulse Transformers specifications for NS0013 LF

Description：MDL SMD 10/100 SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.276" W (12.70mm x 7.00mm)
Height - Seated (Max)：0.079" (2.00mm)
Operating Temperature：0°C ~ 70°C

Pulse Transformers datasheet and documents for NS0013 LF

NS0013 LF

Pulse Transformers Overview

The NS0013 LF is a LAN 10/100 Base-T pulse transformer manufactured by Pulse Electronics. It features a surface mount design with an inductance of 350µH. The component supports 1:1 center-tap configurations for both transmitter and receiver circuits. It operates within a temperature range of 0°C to 70°C and has a maximum height of 2.00mm.

Pulse Transformers Feature Summary

Designed for LAN 10/100 Ethernet applications
Supports simultaneous transmitter and receiver functions
Features 1:1 center-tap configuration

Pulse Transformers Applications

LAN 10/100 Ethernet network interfaces
PCMCIA card implementations
Single port network connectivity modules

Pulse Transformers Procurement Notes

Verify the specific revision status and packaging details, such as tape and reel specifications, against current distributor datasheets. Confirm that the component meets the required RoHS compliance standards for your target market. Ensure the operating temperature range aligns with your system's environmental constraints before finalizing procurement.

Pulse Transformers Selection Notes

Select this component for designs requiring integrated transmission and reception capabilities in a compact surface mount package. The 350µH inductance value is suitable for standard 10/100 Base-T signaling requirements. Consider the 2.00mm profile when evaluating board space limitations and mechanical clearance constraints.

Pulse Transformers Part Context

This part belongs to Pulse Electronics' family of telecommunications transformers. It serves as a critical interface component for isolating and matching impedance in Ethernet physical layer circuits. The product is actively maintained and widely used in consumer electronics and industrial networking equipment.

Pulse Transformers Replacement Considerations

Consult official Pulse Electronics documentation for verified substitute part numbers. Cross-reference pinouts and electrical parameters carefully to ensure compatibility with existing board layouts and circuit designs.
