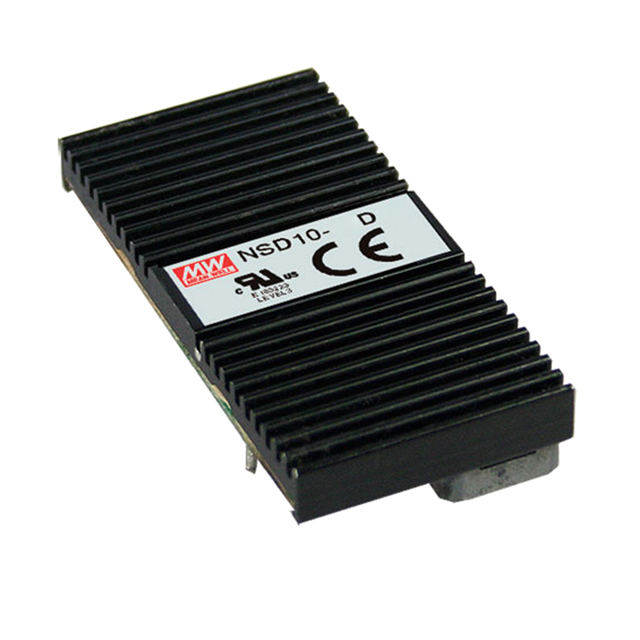

NSD10-12D12

NSD10-12D12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER +/-12V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NSD10-12D12

• Description：DC DC CONVERTER +/-12V 10W
• Series：NSD10-D (10W)
• Mfr：MEAN WELL USA Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9.8V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：420mA, 420mA
• Power (Watts)：10 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-25°C ~ 70°C (With Derating)
• Efficiency：77%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for NSD10-12D12
