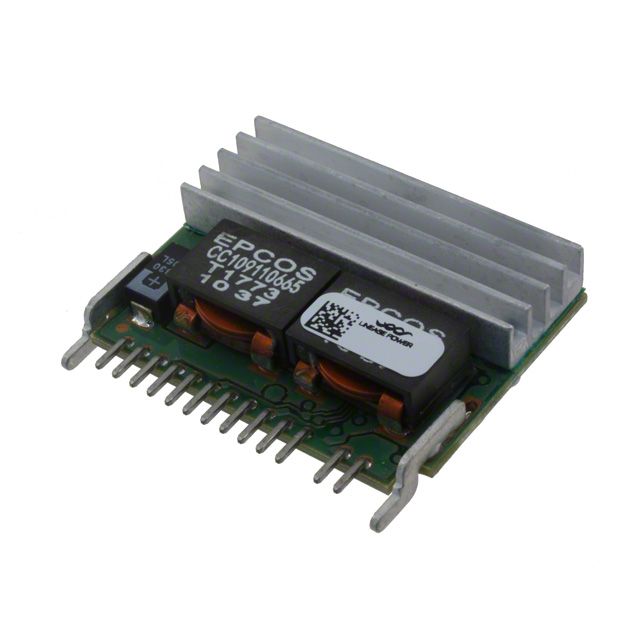

NSR040A0X43Z

NSR040A0X43Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.6-5V 200W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NSR040A0X43Z

• Description：DC DC CONVERTER 0.6-5V 200W
• Series：Naos Raptor
• Mfr：OmniOn Power™
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：5V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：0.6 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：200 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：0°C ~ 70°C
• Efficiency：93.70%
• Mounting Type：Through Hole
• Package / Case：15-SIP Module
• Size / Dimension：1.45" L x 0.42" W x 1.10" H (36.8mm x 10.7mm x 27.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
