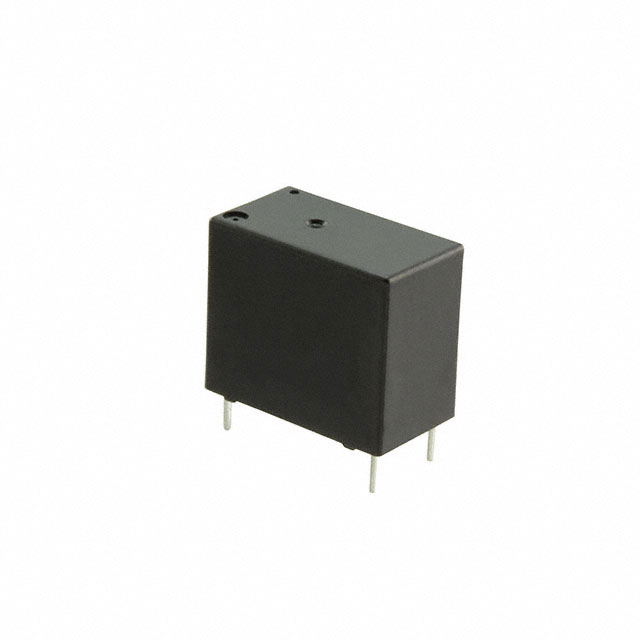

OJT-SS-112LM,000

OJT-SS-112LM,000 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 5A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for OJT-SS-112LM,000

• Description：RELAY GEN PURPOSE SPST 5A 12V
• Series：OJT, OEG
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：250VAC - Max
• Load - Max Switching：1250VA
• Coil Current：27.8 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-30°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CQC, cURus, TUV, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：4 ms
