OR4E02-3BM416C

Field Programmable Gate Array Overview

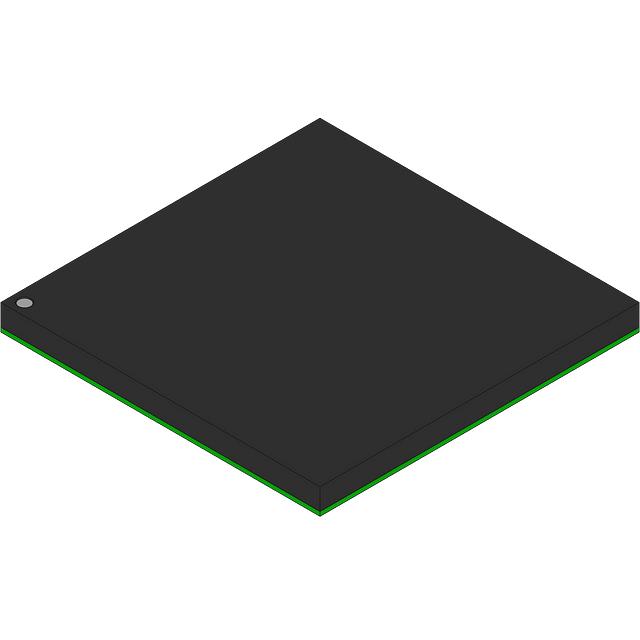

The OR4E02-3BM416C is a Field Programmable Gate Array (FPGA) manufactured by Lattice Semiconductor Corporation. It belongs to the ORCA IV series and features 624 Configurable Logic Blocks (CLBs) with an equivalent gate count of 201,000 gates. The device supports a maximum clock frequency of 420 MHz and utilizes CMOS technology. It is housed in a 416-pin Plastic Ball Grid Array (PBGA) package, specifically identified as FBGA-416. The component operates within a commercial temperature range, with a maximum operating temperature of 70 °C.

Field Programmable Gate Array Feature Summary

• High-speed logic processing capability with a maximum clock frequency of 420 MHz
• Integrated programmable logic architecture featuring 624 CLBs for complex circuit implementation
• CMOS-based construction designed for standard digital logic applications

Field Programmable Gate Array Applications

• Digital signal processing systems requiring moderate logic density
• Interface bridging between different protocol standards
• Custom logic control circuits in industrial equipment

Field Programmable Gate Array Part Context

This component is part of the ORCA IV family from Lattice Semiconductor. This series represents an earlier generation of FPGA technology characterized by high performance per gate and robust I/O capabilities. The specific model designation indicates the logic capacity, speed grade, and package type within this established product line.

Field Programmable Gate Array Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Engineers should consult official Lattice Semiconductor cross-reference tools or datasheets for verified compatible alternatives.
