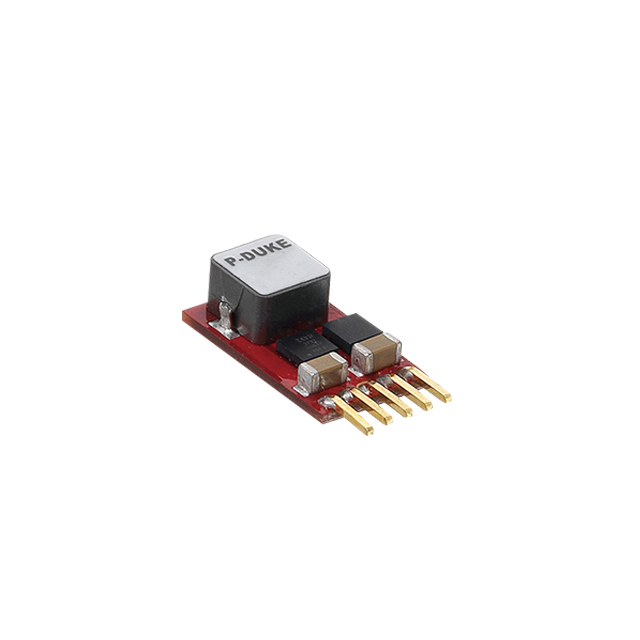

OSR03-24S12

OSR03-24S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5-15V 45W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for OSR03-24S12

• Description：DC DC CONVERTER 5-15V 45W
• Series：OSR03
• Mfr：P-DUKE Technology
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10V
• Voltage - Input (Max)：30V
• Voltage - Output 1：5 ~ 15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3A
• Power (Watts)：45 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.41" L x 0.24" W x 0.65" H (10.4mm x 6.0mm x 16.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
