OVLLG8C7

$0.40

Description：LED GREEN CLEAR 5MM T/H
Series：-
Mfr：TT Electronics/Optek Technology
Package：Bulk

SKU:0147ec79cee9 Category: LED Indication - Discrete Brand: TT Electronics/Optek Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OVLLG8C7 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists TT Electronics/Optek Technology. Its product description is LED GREEN CLEAR 5MM T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for OVLLG8C7

Description：LED GREEN CLEAR 5MM T/H
Series：-
Mfr：TT Electronics/Optek Technology
Package：Bulk
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：2400mcd
Lens Style：Round with Flat Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：85°
Mounting Type：Through Hole
Wavelength - Dominant：525nm
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：5mm
Size / Dimension：-
Height (Max)：6.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for OVLLG8C7

OVLLG8C7

LED Indication - Discrete Overview

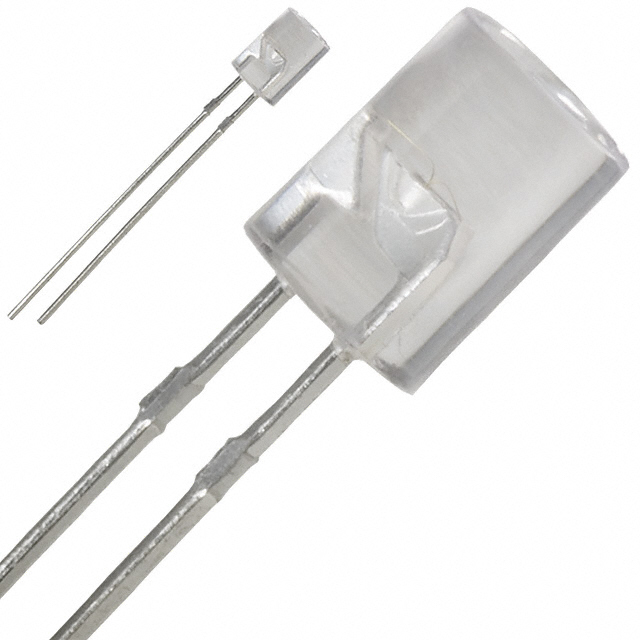

The OVLLG8C7 is a single-color green LED manufactured by TT Electronics/Optek Technology. It features a T-1 3/4 (5 mm) cylindrical lens with water-clear transparency and a colorless appearance. The component emits light at a wavelength of 525 nm with an intensity of 2400 mcd. Electrical characteristics include a forward voltage of 3.4 V and a forward current of 20 mA, with a power rating of 100 mW. It utilizes through-hole radial mounting in a bulk package. The device operates within a temperature range of -40°C to +85°C and provides an 85-degree viewing angle.

LED Indication - Discrete Feature Summary

Features a 5 mm cylindrical lens with water-clear transparency for effective light transmission.
Provides high-intensity green illumination at a 525 nm wavelength.
Designed for reliable through-hole radial mounting on printed circuit boards.

LED Indication - Discrete Applications

General purpose indicator lighting
Panel status indication
Electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number OVLLG8C7 against official TT Electronics documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical and mechanical specifications. Check RoHS compliance status and moisture sensitivity levels prior to integration into production workflows.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm through-hole green LED is required. Consider the 2400 mcd intensity and 85-degree viewing angle for visibility needs. Ensure the 3.4 V forward voltage aligns with the circuit design constraints and thermal management requirements for continuous operation.

LED Indication - Discrete Part Context

This component belongs to the Optek single-color LED portfolio from TT Electronics. It represents a standard discrete indicator designed for general electronic applications. The product line emphasizes reliability and consistent optical performance across various industrial and consumer electronics sectors.
