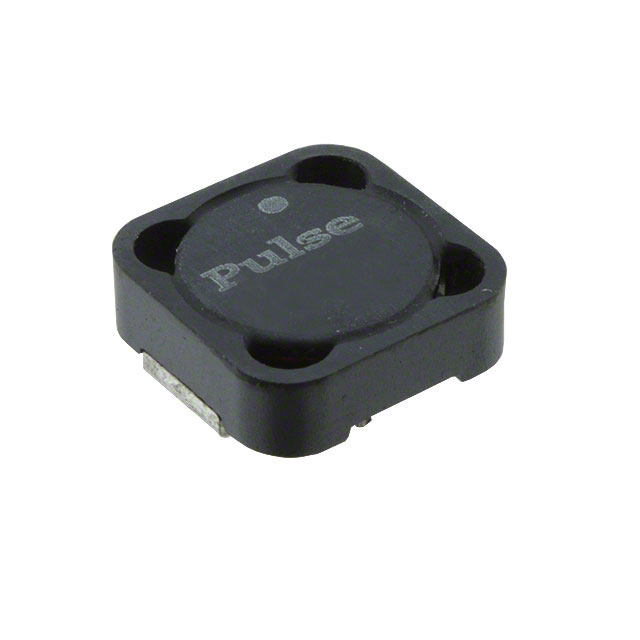

P1168.124NLT

$1.33

Description：FIXED IND 120UH 1.1A 316MOHM SMD
Series：P1168NL
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:56d2b14c13bd Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P1168.124NLT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 120UH 1.1A 316MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for P1168.124NLT

Description：FIXED IND 120UH 1.1A 316MOHM SMD
Series：P1168NL
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：-
Inductance：120 µH
Tolerance：±20%
Current Rating (Amps)：1.1 A
Current - Saturation (Isat)：1.1A
Shielding：Shielded
DC Resistance (DCR)：316mOhm Max
Q @ Freq：-
Frequency - Self Resonant：5.5MHz
Ratings：-
Operating Temperature：-40°C ~ 130°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)：0.177" (4.50mm)
Features：-

Fixed Inductors datasheet and documents for P1168.124NLT

P1168.124NLT

Fixed Inductors Overview

The P1168.124NLT is a shielded wirewound power inductor from the P1168NL series by Pulse Electronics. It features an inductance of 120 µH with a tolerance of ±20%. The component has a maximum DC resistance of 316 mOhms and supports a rated current of 1.1 A. Its saturation current is specified at 1.9 A, with a self-resonant frequency of 9 MHz. The device utilizes a non-standard surface mount package measuring 12.24 mm x 12.24 mm.

Fixed Inductors Feature Summary

Shielded drum core construction for reduced electromagnetic interference
Wirewound technology ensuring stable performance under load
Surface mount design optimized for automated assembly processes

Fixed Inductors Applications

Power supply filtering circuits
DC-DC converter input and output stages
General-purpose power electronics applications

Fixed Inductors Procurement Notes

Verify the specific electrical parameters against the official datasheet before integration, as values may vary slightly between manufacturing batches. Confirm that the 12.24 mm footprint aligns with your PCB layout requirements. Ensure the thermal environment remains within operational limits to maintain the 1.1 A rating. Cross-reference the manufacturer part number to avoid counterfeit components during sourcing.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for moderate current levels around 1.1 A. The 120 µH value suits applications needing significant energy storage in small form factors. Consider the 316 mOhm DCR impact on efficiency. The shielded design is critical for noise-sensitive environments where unshielded alternatives might cause interference.

Fixed Inductors Part Context

This part belongs to the P1168NL series, which offers SMT shielded drum core inductors up to 14 A. The series provides various inductance options within a consistent 12.24 mm square footprint. It complements other Pulse power magnetics solutions for complete power management designs.
