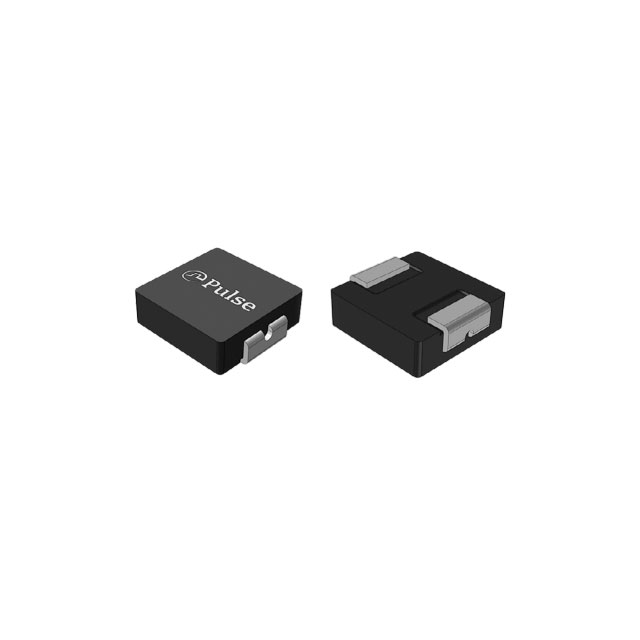

PA5403.471NLT

$0.32

Description：FIXED IND 470NH 7A 15.8MOHM SMD
Series：PA5403
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:a9a3c4b331f5 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PA5403.471NLT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 470NH 7A 15.8MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PA5403.471NLT

Description：FIXED IND 470NH 7A 15.8MOHM SMD
Series：PA5403
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：Molded
Material - Core：-
Inductance：470 nH
Tolerance：±20%
Current Rating (Amps)：7:00 AM
Current - Saturation (Isat)：11A
Shielding：Shielded
DC Resistance (DCR)：15.8mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max)：0.047" (1.20mm)
Features：-

Fixed Inductors datasheet and documents for PA5403.471NLT

PA5403.471NLT

Fixed Inductors Overview

The PA5403.471NLT is a surface-mount power inductor from Pulse Electronics, designed for high-current applications. It features a molded core construction and shielded design to minimize electromagnetic interference. The component offers an inductance of 470 nH with a tolerance of ±20%. It supports a maximum DC current of 11 A and a saturation current of 7 A. The maximum DC resistance is 15.8 mOhms. Operating temperatures range from -40°C to +125°C. The package dimensions are non-standard, typical for the PA5403 series.

Fixed Inductors Feature Summary

Shielded molded construction reduces magnetic flux leakage
High current handling capability for power supply circuits
Wide operating temperature range suitable for demanding environments

Fixed Inductors Applications

Point-of-load (POL) converters
DC-DC converter output filtering
Power management modules

Fixed Inductors Procurement Notes

Verify the specific package dimensions against your PCB footprint, as the datasheet lists the size as non-standard. Confirm that the 11 A continuous current rating meets your thermal design requirements under actual operating conditions. Ensure the 470 nH inductance value aligns with your circuit's ripple current specifications. Check for RoHS compliance status if required by your manufacturing standards.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor with high current capacity is needed for low-inductance applications. Compare the 15.8 mOhm DCR against system efficiency targets. Consider the PA5403 series form factor for space-constrained designs. Evaluate thermal performance at the rated 11 A current to ensure reliability within the specified temperature range.

Fixed Inductors Part Context

This part belongs to the PA5403 series of high-power surface-mount inductors from Pulse Electronics. The series is characterized by its molded core technology and shielded structure, which provides robust performance in high-current scenarios. It is distinct from other series like PA5404 or PA43xx by its specific dimensional profile and current ratings tailored for dense power electronics layouts.
