PB-2410-2

Overview

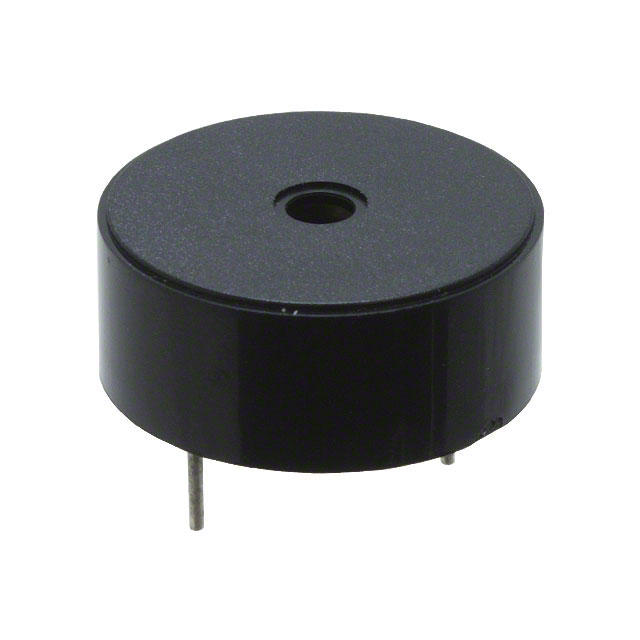

The PB-2410-2 is an externally driven piezoelectric buzzer manufactured by Soberton Inc. It operates at a nominal voltage of 12V with a current consumption of 10mA. The device produces a sound pressure level of 95dB at 12V measured from a distance of 10cm. Its resonant frequency is 3400Hz (3.4kHz). The unit features through-hole PC pin termination and has a diameter of 23.50mm.

Feature Summary

• Externally driven piezoelectric transducer design
• Through-hole mounting with PC pins
• High sound pressure output capability

Applications

• Audio indicator circuits
• Alarm systems
• Electronic device signaling

Procurement Notes

Verify the specific suffix and package type against official Soberton documentation to ensure compatibility with your assembly process. Confirm RoHS status and lead-free requirements for regulatory compliance. Check datasheet specifications for operating voltage range and drive circuit requirements before integration.

Selection Notes

Select this component when a high-volume, cost-effective piezo buzzer is required for audible alerts. Ensure the driving circuit can supply the necessary 10mA current at 12V. Consider the 23.5mm diameter for enclosure space constraints. Verify that external drive circuitry is available as the unit lacks internal oscillation.

Part Context

This part belongs to the PB Series of piezoelectric buzzers from Soberton Inc. The series offers various sizes and voltage ratings for general-purpose audio indication. The PB-2410-2 specifically targets applications requiring robust acoustic output in a standard through-hole form factor.

Replacement Considerations

Direct substitutes must match the 12V nominal voltage, 3.4kHz frequency, and 23.5mm diameter. Verify equivalent sound pressure levels and electrical characteristics. Cross-reference with other manufacturers' piezo buzzers offering similar through-hole pin configurations.
