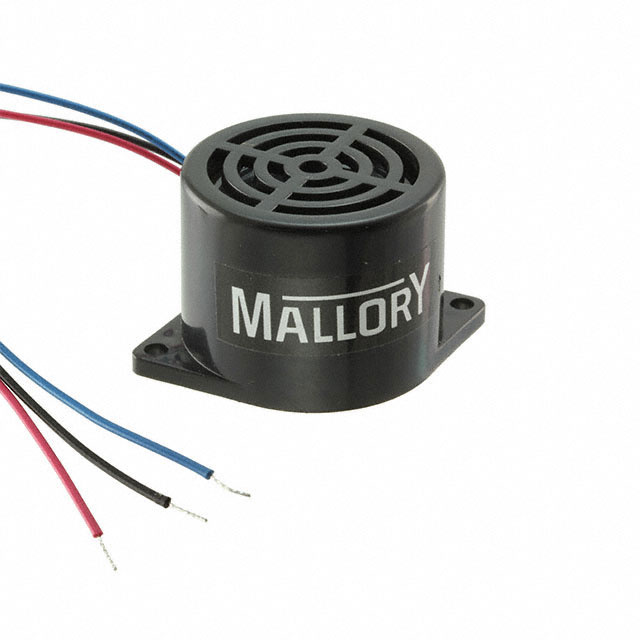

PB-32N10W-12K

$14.96

Description：BUZZER MAGNETIC 31.7MM FLANGE
Series：PB
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:1a7dccd6279c Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PB-32N10W-12K is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER MAGNETIC 31.7MM FLANGE. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for PB-32N10W-12K

Description：BUZZER MAGNETIC 31.7MM FLANGE
Series：PB
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：1.12kHz
Technology：Magnetic
Operating Mode：Ding Dong
Duration：-
Sound Pressure Level (SPL)：75dB @ 6V, 30cm
Current - Supply：90 ~ 155mA
Port Location：Top
Operating Temperature：-20°C ~ 55°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Panel Mount, Flange
Termination：Wire Leads
Height - Seated (Max)：0.988" (25.10mm)
Voltage - Rated：-
Voltage Range：6 ~ 18V
Size / Dimension：1.248" Dia (31.70mm)

Alarms, Buzzers, And Sirens datasheet and documents for PB-32N10W-12K

PB-32N10W-12K

Alarms, Buzzers, And Sirens Overview

The PB-32N10W-12K is a magnetic buzzer manufactured by Mallory Sonalert Products Inc. It operates on a DC input voltage range of 6 to 18VDC, with a nominal rating of 12V. The device produces an acoustic output level between 75 and 82 dBA at a frequency of 1230Hz. Designed for chassis mounting, it features a compact form factor suitable for industrial applications requiring reliable audible alerts.

Alarms, Buzzers, And Sirens Feature Summary

Magnetic transducer technology for consistent audio performance
Integrated driver circuitry for direct DC connection
Chassis mount design for secure panel integration

Alarms, Buzzers, And Sirens Applications

Industrial machinery status indication
Control panel alarm systems
Equipment fault detection alerts

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific acoustic tolerance requirements against the 75-82 dBA range. Confirm that the 1230Hz frequency aligns with regulatory or operational audibility standards. Ensure the chassis mounting method matches the enclosure design. Validate the 6-18VDC operating window against the system power supply specifications to prevent malfunction.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a magnetic buzzer is preferred over piezoelectric types for lower impedance characteristics. The 1230Hz tone provides distinct audibility in moderate noise environments. The wide voltage range allows flexibility in power distribution designs without requiring precise regulation within the 6-18VDC band.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the Mallory Sonalert industrial buzzer lineup. It utilizes magnetic drive technology rather than piezoelectric elements. The series is designed for robust performance in demanding industrial settings. Chassis mounting distinguishes it from panel-mount or PCB-mounted alternatives in the same product family.
