PCTP915

Antennas RF Overview

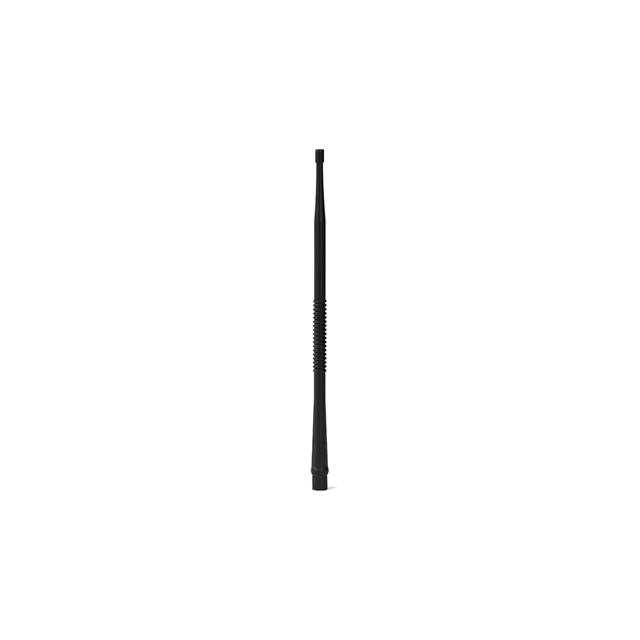

The PCTP915 is a heavy-duty flexible RF antenna designed for the 902–928 MHz frequency band, specifically targeting ISM applications. It features a 2 dBi gain and supports up to 5 W of power handling. The unit includes an integrated TNC male connector at the base of the coil and utilizes a chrome whip element. Operating within a temperature range of -40°C to +85°C, it is engineered for robust performance in demanding environments.

Antennas RF Feature Summary

• Heavy-duty flexible construction with integrated TNC male connector
• Optimized for high-performance connectivity in Bluetooth, Cellular, and Wi-Fi bands
• Chrome whip design suitable for extreme temperature and vibration conditions

Antennas RF Applications

• Vehicular installations on construction trucks
• LMR/TETRA/P25 communication systems
• Bluetooth Low-Energy (BLE) connectivity devices
• Industrial IoT gateways requiring rugged RF solutions

Antennas RF Procurement Notes

Verify the specific manufacturer designation, as Amphenol PCTEL products may also be listed under Maxrad or PCTEL branding. Confirm that the required connector type matches the integrated TNC male specification. Ensure environmental ratings meet the operational temperature requirements of -40°C to +85°C for the intended installation site.

Antennas RF Selection Notes

Select this model when a rigid antenna is unsuitable due to space constraints or vibration risks. The flexible coil design absorbs mechanical stress, making it preferable over standard whip antennas for mobile platforms. Verify that the 2 dBi gain meets the link budget requirements for the specific 902–928 MHz application.

Antennas RF Part Context

This component belongs to the PCTP series of mobile antennas from Amphenol PCTEL. These antennas are part of a broader portfolio focused on providing reliable wireless connectivity for industrial and vehicular applications. The series emphasizes durability and consistent performance across various cellular and proprietary radio standards.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. When replacing, ensure the new antenna matches the 902–928 MHz frequency range, TNC male interface, and similar gain specifications to maintain system integrity.
