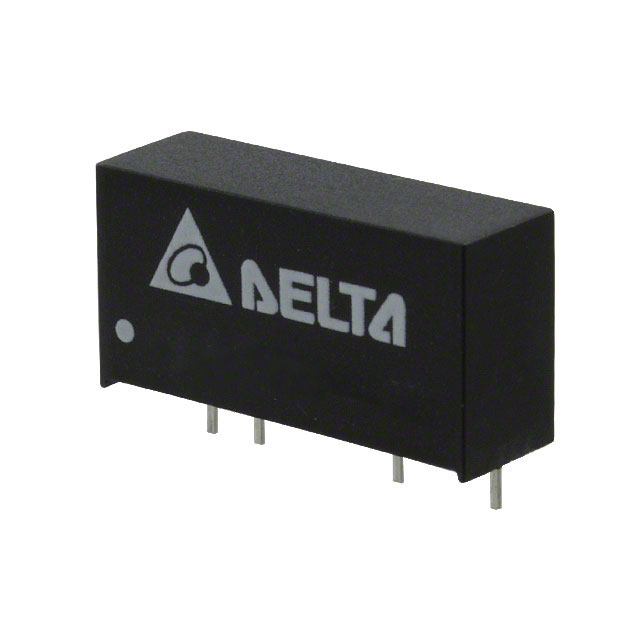

PD01D0505A

PD01D0505A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Delta Electronics. Its product description is DC DC CONVERTER +/-5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PD01D0505A

• Description：DC DC CONVERTER +/-5V 1W
• Series：PD01S/D (1W)
• Mfr：Delta Electronics
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：72%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PD01D0505A
