PE2BB

$0.31

Description：DIODE STANDARD 100V 2A DO214AA
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e53be490c822 Category: Single Diodes Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE2BB is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE STANDARD 100V 2A DO214AA. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for PE2BB

Description：DIODE STANDARD 100V 2A DO214AA
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io)：2A
Voltage - Forward (Vf) (Max) @ If：900 mV @ 2 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：20 ns
Current - Reverse Leakage @ Vr：2 µA @ 100 V
Capacitance @ Vr, F：30pF @ 4V, 1MHz
Mounting Type：Surface Mount

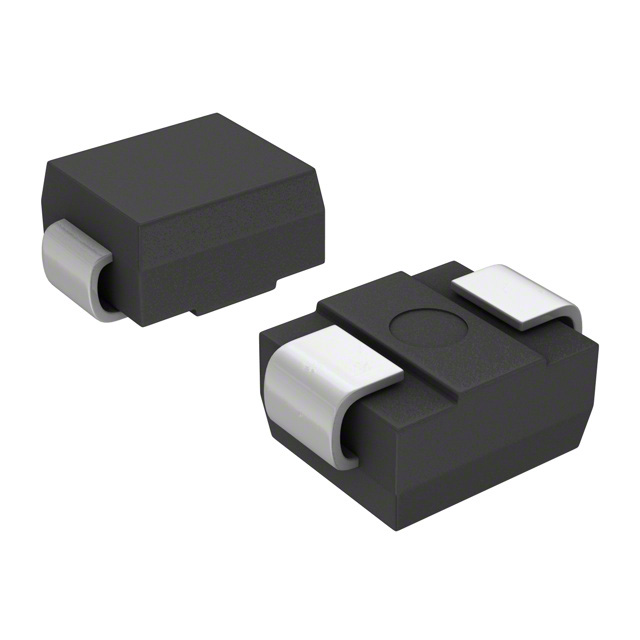

Package / Case：DO-214AA, SMB
Supplier Device Package：DO-214AA (SMB)
Operating Temperature - Junction：-55°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for PE2BB

PE2BB

Single Diodes Overview

The PE2BB is a 100V, 2A ultra-fast recovery rectifier manufactured by Taiwan Semiconductor Corporation. It features a 20ns peak reverse recovery time and is housed in a surface-mount DO-214AA (SMB) package. The device utilizes silicon junction technology for efficient switching applications.

Single Diodes Feature Summary

Ultra-fast recovery characteristics with 20ns reverse recovery time
Surface-mount construction in compact DO-214AA package
High surge current capability for robust operation

Single Diodes Applications

High-frequency switching power supplies
Free-wheeling diodes in DC-DC converters
Polarity protection circuits

Single Diodes Procurement Notes

Verify the exact suffix against official Taiwan Semiconductor documentation to confirm specific binning or tape-and-reel specifications. Ensure the component matches the required voltage and current ratings for your specific circuit design before procurement.

Single Diodes Selection Notes

Select this component when fast switching speeds are critical to minimize reverse recovery losses. The SMB package offers a balance between thermal performance and board space efficiency for general-purpose high-speed rectification tasks.

Single Diodes Part Context

Taiwan Semiconductor Corporation produces discrete power devices including Schottky diodes and MOSFETs. The PE2BB belongs to their ultra-fast recovery rectifier family, designed for applications requiring rapid switching capabilities and reliable performance in power management systems.
