PE51208

Antennas RF Overview

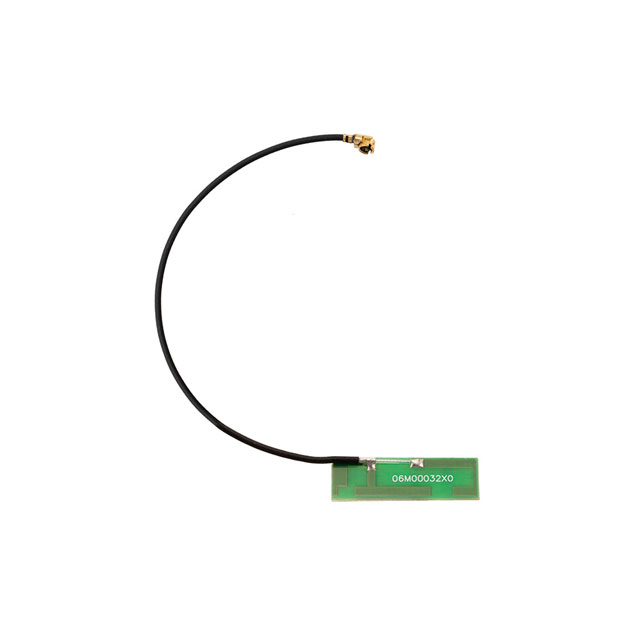

The Pasternack PE51208 is a multiband embedded PCB antenna designed for integration into wireless devices. It operates within the frequency range of 2400 to 2500 MHz and provides a gain of 2 dBi. The component features a UMCX connector interface, facilitating compact connections in space-constrained applications. This antenna eliminates the need for external antenna solutions by allowing direct embedding into equipment housings.

Antennas RF Feature Summary

• Embedded PCB design enables direct integration into device structures
• Multiband operation supports specific frequency requirements
• UMCX connector interface ensures compact connectivity

Antennas RF Applications

• Wireless device integration
• Embedded antenna systems
• Compact electronic equipment

Antennas RF Procurement Notes

Verify the exact datasheet version and mechanical dimensions against your specific enclosure constraints before procurement. Confirm that the UMCX connector mating requirements align with your board layout. Ensure the operating temperature range meets your application environment specifications. Cross-reference the manufacturer's part number to avoid confusion with similar models in the series.

Antennas RF Selection Notes

Select this model when a low-profile, embedded solution is required for the 2400-2500 MHz band. The 2 dBi gain is suitable for short-range or internal communication links where external antennas are impractical. Consider the UMCX connector size relative to available board space. Evaluate the multiband capability if adjacent frequency support is necessary alongside the primary operating range.

Antennas RF Part Context

This component belongs to Pasternack's line of embedded PCB antennas. These components are engineered to replace traditional external antennas, offering a streamlined profile for modern consumer electronics and IoT devices. The series focuses on minimizing visual and physical footprint while maintaining reliable RF performance through integrated designs.

Antennas RF Replacement Considerations

Check for updated revisions from Pasternack that may offer improved impedance matching or radiation patterns. Verify compatibility with existing UMCX mating connectors if substituting with other brands. Ensure any alternative maintains the same form factor and mounting hole configuration for seamless replacement.
