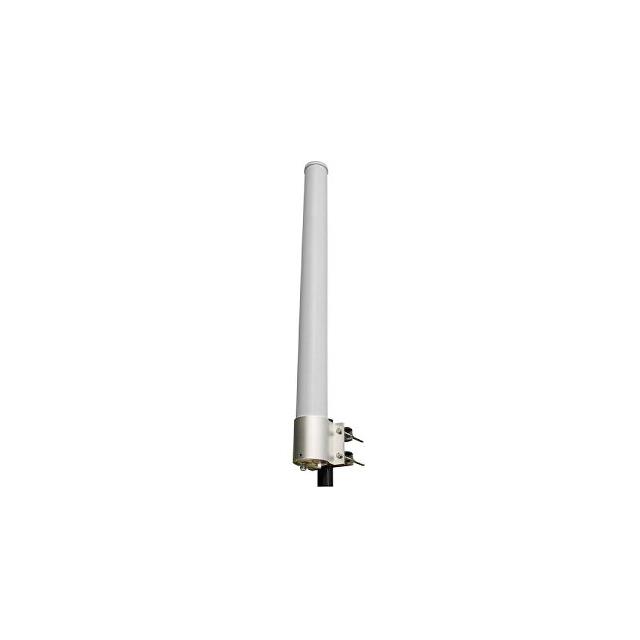

PE51OM1010

$88.03

Description：2.4/ 5 GHz 9 dBi Dual Band / Pol
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:e57474eb4402 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1010 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4/ 5 GHz 9 dBi Dual Band / Pol. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1010

Description：2.4/ 5 GHz 9 dBi Dual Band / Pol
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：4.1GHz
Frequency Range：2.4GHz ~ 5.8GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.6
Return Loss：-
Gain：6dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：40.551" (1030.00mm)
Applications：802.11a/b/g/n/ac
Power - Max：100 W

Antennas RF datasheet and documents for PE51OM1010

PE51OM1010

Antennas RF Overview

The PE51OM1010 is a dual-band omnidirectional antenna manufactured by Pasternack, designed for operation in the 2.4 GHz and 5.8 GHz frequency ranges. It provides a gain of 6 dBi across both bands with a maximum Voltage Standing Wave Ratio (VSWR) of 1.6:1. The unit features an N-type female connector and utilizes a PVC radome for environmental protection. Rated for 100 W power handling, it supports applications including Wi-Fi, Bluetooth, WLAN, Zigbee, and general RF communications.

Antennas RF Feature Summary

Dual-band coverage supporting 2.4-2.5 GHz and 5.1-5.8 GHz frequencies
Omni-directional radiation pattern with 6 dBi gain
Durable PVC radome construction for outdoor deployment
N-type female connector interface

Antennas RF Applications

Wi-Fi network infrastructure
Bluetooth communication systems
Wireless Local Area Network (WLAN) deployments
Zigbee sensor networks

Antennas RF Procurement Notes

Verify component authenticity through authorized channels to ensure compliance with RoHS standards. Confirm that the N-type female connector matches system requirements. Check current availability status as supply may be restricted. Ensure the 100 W power rating aligns with operational limits. Validate packaging integrity upon receipt.

Antennas RF Selection Notes

Select this model for applications requiring simultaneous 2.4 GHz and 5.8 GHz omnidirectional coverage. The 6 dBi gain offers balanced range and coverage. The N-type connector suits standard coaxial interconnects. Consider the PVC radome for weather resistance. Verify VSWR performance meets system impedance matching needs.

Antennas RF Part Context

This component belongs to the Omni-Directional Antennas series from Pasternack. It falls under the broader category of outdoor antennas within the manufacturer's portfolio. The product is categorized specifically for dual-band wireless communication support.
