PE7009-3

Attenuators Overview

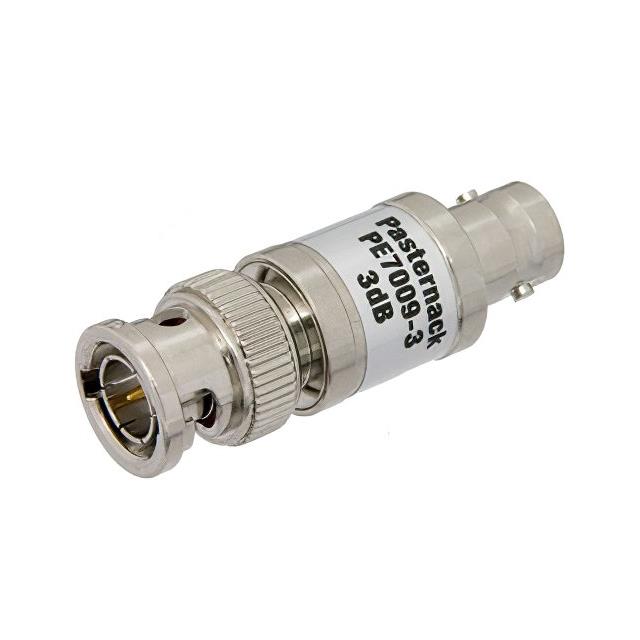

The Pasternack PE7009-3 is a fixed attenuator designed for 75 Ohm RF applications. It features BNC male to BNC female connectors and provides a precise attenuation value of 3 dB. The unit is rated for up to 1 Watt of power handling capacity within a frequency range extending to 1 GHz. Constructed with a brass nickel body, this component ensures reliable signal reduction in impedance-matched systems.

Attenuators Feature Summary

• Provides fixed 3 dB attenuation for signal level control
• Features 75 Ohm BNC male to BNC female interface connections
• Rated for 1 Watt power handling up to 1 GHz frequency

Attenuators Applications

• Signal conditioning in 75 Ohm video distribution networks
• Impedance matching in broadcast transmission lines
• Attenuation requirements in RF test and measurement setups

Attenuators Procurement Notes

Verify the specific connector gender and impedance match (75 Ohm) against system requirements. Confirm that the 1 Watt power rating and 1 GHz frequency limit align with operational parameters. Check for RoHS compliance status if environmental regulations apply to the deployment environment.

Attenuators Selection Notes

Select this model when a fixed 3 dB reduction is required in a 75 Ohm environment. Ensure the application does not exceed 1 Watt power or 1 GHz frequency. Compare against variable attenuators if adjustable levels are needed instead of a fixed step.

Attenuators Part Context

This component belongs to the Pasternack fixed attenuator series, which offers various attenuation values and connector types. It serves as a passive device for reducing signal amplitude without active components, maintaining signal integrity in high-frequency circuits.

Attenuators Replacement Considerations

Direct substitutes must maintain 75 Ohm impedance, BNC connectors, and 3 dB attenuation. Verify power ratings and frequency ranges match or exceed original specifications. Ensure physical dimensions allow for equivalent mounting in the existing assembly.
