PE7052-20

Attenuators Overview

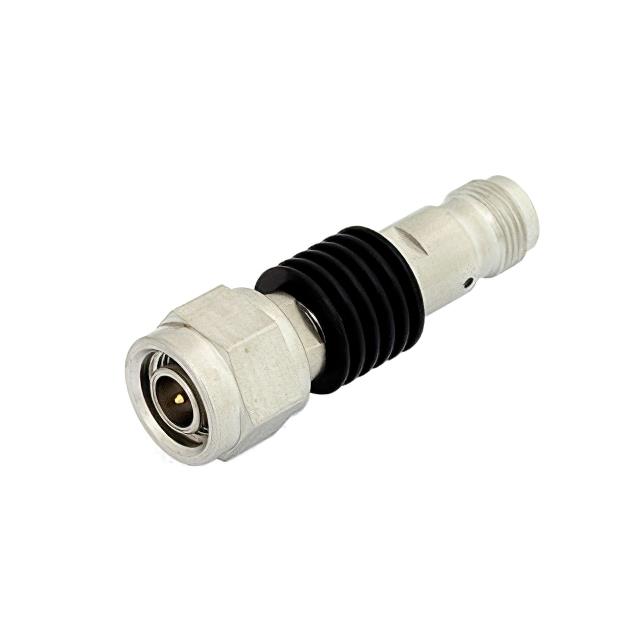

The Pasternack PE7052-20 is a fixed attenuator designed for radio frequency applications. It provides a constant attenuation of 20 dB across a frequency range from DC to 18 GHz. The component supports a power handling capacity of 5 watts. It utilizes TNC male connectors for interface connections, ensuring compatibility with standard RF systems operating within the specified bandwidth and power limits.

Attenuators Feature Summary

• Provides fixed 20 dB signal attenuation
• Operates from DC to 18 GHz frequency range
• Supports 5-watt power handling capacity
• Features TNC male connector interfaces

Attenuators Applications

• RF signal level reduction in test equipment
• Impedance matching in microwave circuits
• Signal conditioning in communication systems

Attenuators Procurement Notes

Verify the specific connector type and power rating against application requirements before purchase. Confirm that the operating frequency range up to 18 GHz meets system specifications. Ensure the 5-watt power handling capability is sufficient for the intended signal levels. Check for any environmental or compliance certifications required for the deployment environment.

Attenuators Selection Notes

Select this model when a precise 20 dB attenuation is required at high frequencies up to 18 GHz. Consider the TNC connector interface for mechanical stability and ease of connection. Evaluate the 5-watt power limit to ensure it exceeds the maximum expected signal power. Compare with variable attenuators if adjustable attenuation is needed instead of a fixed value.

Attenuators Part Context

This component belongs to the category of fixed RF attenuators manufactured by Pasternack. It is part of a series offering various attenuation values and frequency ranges. Fixed attenuators are essential passive components used to reduce signal strength without distortion, unlike active devices. This specific model targets high-frequency applications requiring stable performance over a broad bandwidth.

Attenuators Replacement Considerations

PE7052-30 offers 30 dB attenuation in the same form factor. Other models in the PE7052 series provide different attenuation values such as 10 dB or 40 dB. Verify connector gender and impedance compatibility when substituting with similar fixed attenuators from the same or other manufacturers.
