PE7062-6

Attenuators Overview

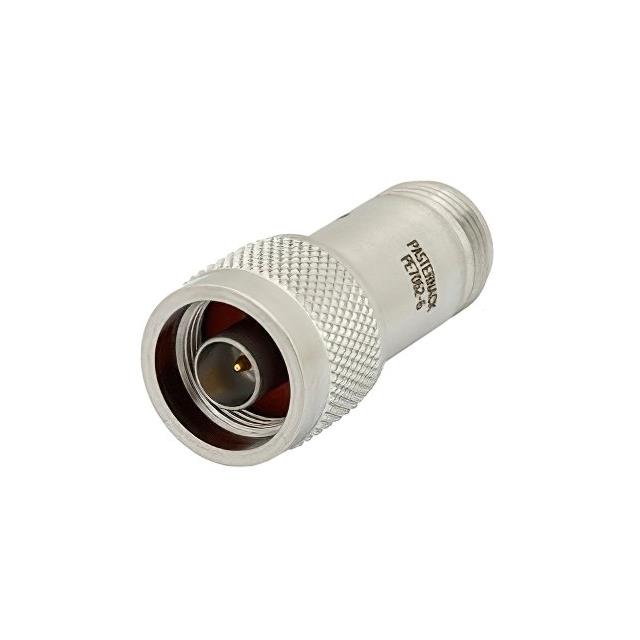

The PE7062-6 is a fixed RF attenuator manufactured by Pasternack. It provides 6 dB of attenuation within a frequency range of 500 MHz to 2 GHz. The component features N-type connectors with a male-to-female configuration. It operates at a standard impedance of 50 Ohms and supports a maximum power rating of 2 Watts. The housing is constructed from passivated stainless steel, ensuring durability in various environments.

Attenuators Feature Summary

• Fixed attenuation value of 6 dB for signal level reduction
• N-type connector interface connecting male to female ports
• Passivated stainless steel body for environmental protection
• Operational frequency range extending up to 2 GHz

Attenuators Applications

• RF signal conditioning in test and measurement equipment
• Microwave system power management
• Telecommunications infrastructure components
• General-purpose instrumentation signal adjustment

Attenuators Procurement Notes

Verify the specific part number PE7062-6 against official Pasternack documentation to confirm the 6 dB attenuation value and N-type interface specifications. Ensure the required 2 Watt power rating and 500 MHz to 2 GHz frequency range align with your system design constraints before procurement.

Attenuators Selection Notes

Select this component when a precise 6 dB reduction is required between N-type male and female connections. Confirm that the 2 Watt power handling capacity meets the system's peak power requirements. Validate that the operating frequency falls within the specified 500 MHz to 2 GHz range for optimal performance.

Attenuators Part Context

This model belongs to Pasternack's line of fixed RF attenuators designed for microwave applications. It serves as a passive component for managing signal levels in coaxial systems. The product utilizes robust construction materials to maintain performance stability across its designated frequency band.

Attenuators Replacement Considerations

Consult official manufacturer substitution lists for compatible alternatives. Verify that any replacement maintains identical 6 dB attenuation, N-type interfaces, and 50 Ohm impedance characteristics.
