PE7087-4

Attenuators Overview

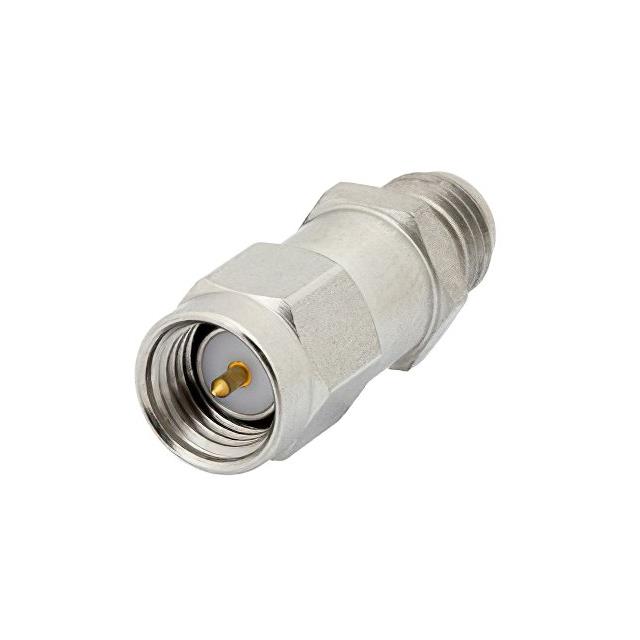

The Pasternack PE7087-4 is a fixed RF attenuator designed for high-frequency applications. It provides a precise attenuation value of 4 dB with SMA male to SMA female connectors. The device operates within a frequency range of 0 Hz to 26 GHz and supports a maximum power rating of 2 Watts at the stated attenuation level. Constructed with a passivated stainless steel body, it ensures durability in demanding environments.

Attenuators Feature Summary

• Utilizes an inline resistive PI attenuator pad design for signal reduction
• Features a passivated stainless steel housing for corrosion resistance
• Supports operation up to 26 GHz frequency range

Attenuators Applications

• RF signal testing and measurement setups
• Microwave circuit protection and level adjustment
• Telecommunications equipment signal conditioning

Attenuators Procurement Notes

Verify the specific connector gender configuration (SMA Male to SMA Female) matches your system requirements. Confirm that the 2 Watt power rating is sufficient for your operational power levels. Ensure the 26 GHz frequency limit aligns with your application bandwidth needs before finalizing procurement.

Attenuators Selection Notes

Select this component when a precise 4 dB reduction is required in the microwave spectrum. It is suitable for systems utilizing SMA interfaces where compact, robust attenuation is necessary. Consider the 26 GHz upper frequency limit to ensure compatibility with high-speed signal paths.

Attenuators Part Context

This model belongs to Pasternack's line of coaxial fixed attenuators. These components are engineered to provide stable attenuation values across wide bandwidths. The series typically features durable metal housings and standardized connectors to facilitate easy integration into existing RF infrastructure.

Attenuators Replacement Considerations

Ensure any substitute maintains the 4 dB attenuation value and 26 GHz frequency capability. Verify that replacement units offer compatible SMA Male/Female interfaces and equal or higher power handling ratings.
