PE7206-6

Attenuators Overview

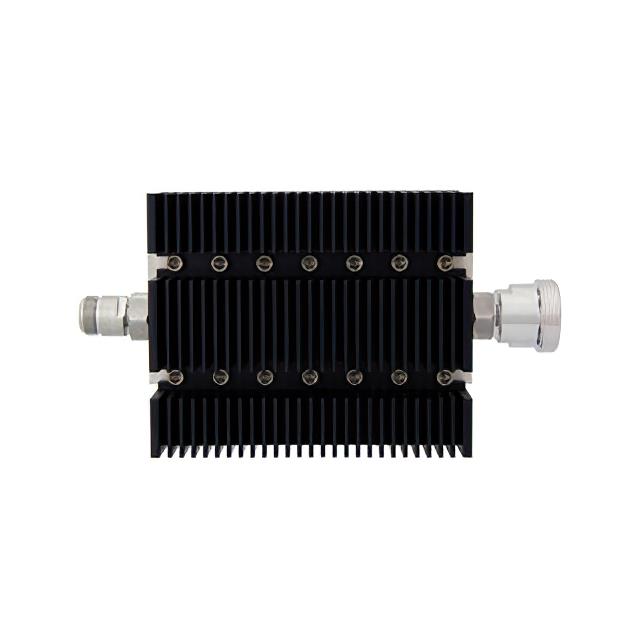

The Pasternack PE7206-6 is a fixed RF attenuator module designed for microwave applications. It provides a precise attenuation value of 6 dB across a frequency range of 0 Hz to 6 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 100 Watts at the stated attenuation level. This unit features N Female input and 7/16 DIN Female output connectors, ensuring compatibility with standard high-power RF systems.

Attenuators Feature Summary

• Provides fixed 6 dB signal attenuation
• Operates within 0 Hz to 6 GHz frequency range
• Supports 100 Watts power handling
• Features N Female to 7/16 DIN Female interfaces

Attenuators Applications

• Microwave signal testing and measurement setups
• High-power RF system calibration
• Signal level reduction in communication links
• Laboratory equipment interconnects

Attenuators Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as this model specifies N Female to 7/16 DIN Female. Confirm that the operational environment does not exceed the 100 Watt power rating or 6 GHz frequency limit. Check datasheet specifications for thermal management needs under continuous wave operation. Ensure mechanical fit for the 7/16 DIN interface is compatible with existing hardware.

Attenuators Selection Notes

Select this component when a fixed 6 dB loss is required between N-type and 7/16 DIN interfaces. Consider the 100 Watt power rating for high-energy applications. Verify frequency coverage up to 6 GHz meets system bandwidth needs. Choose this module over adjustable attenuators if constant attenuation is sufficient for the design.

Attenuators Part Context

This part belongs to Pasternack's line of fixed RF attenuators. It serves as a passive component for managing signal strength in microwave circuits. The combination of N and 7/16 DIN connectors allows for versatile integration into test benches and industrial RF infrastructure.

Attenuators Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Users should verify exact electrical parameters and connector types when evaluating alternative models from other manufacturers.
