PE7211-10

Attenuators Overview

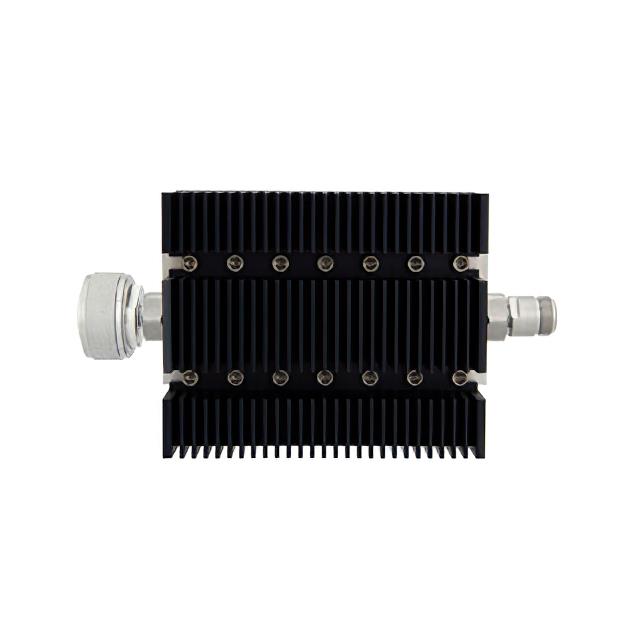

The Pasternack PE7211-10 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation of 10 dB with a maximum operating frequency of 6 GHz and a 50 Ohm impedance. The device features a 7/16 DIN male connector on one end and an N female connector on the other. It is rated to handle up to 100 Watts of power at the stated attenuation value, ensuring reliable performance in demanding microwave environments.

Attenuators Feature Summary

• High power handling capability rated at 100 Watts
• Wideband operation extending up to 6 GHz
• Fixed 10 dB attenuation value
• Mixed connector interface combining 7/16 DIN male and N female

Attenuators Applications

• Microwave communication systems requiring signal reduction
• Test and measurement setups for high-power RF signals
• Power amplifier output matching and protection

Attenuators Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as this model combines a 7/16 DIN male with an N female. Confirm that the 100 Watt power rating aligns with the peak power levels in the application circuit. Ensure the 6 GHz frequency range covers the operational bandwidth. Check for RoHS compliance status if environmental regulations apply to the deployment.

Attenuators Selection Notes

Select this component when a fixed 10 dB reduction is required for signals up to 6 GHz. The mixed connector design necessitates checking adapter compatibility if interfacing with standard N-type or 7/16 DIN systems. Consider the physical size and mounting requirements for the module form factor. Verify thermal management needs given the 100 Watt power rating.

Attenuators Part Context

This part belongs to Pasternack's line of fixed RF attenuators. It serves as a passive component for controlling signal amplitude in microwave circuits. The combination of 7/16 DIN and N connectors offers flexibility in integrating different subsystem standards within the same chain.

Attenuators Replacement Considerations

Check for exact 10 dB attenuation and 100 Watt power rating in substitutes. Ensure the replacement supports 6 GHz frequency and maintains 50 Ohm impedance. Verify connector compatibility between 7/16 DIN male and N female interfaces.
