PE9856B-10-CPRG

Antennas RF Overview

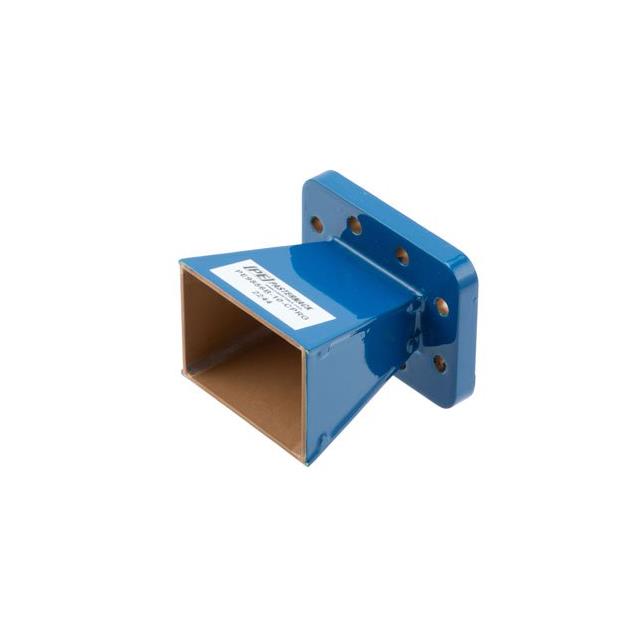

The PE9856B-10-CPRG is a standard gain horn antenna manufactured by Pasternack, designed for operation within the WR-90 waveguide frequency range of 8.2 GHz to 12.4 GHz. This component features a nominal gain of 10 dBi and utilizes a UG-135/U square cover flange interface. It belongs to the Directional Antennas series and is packaged in bulk quantities.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-90 waveguide applications
• Nominal 10 dBi gain across the operational bandwidth
• UG-135/U square cover flange configuration

Antennas RF Applications

• Microwave test and measurement systems
• Radar system calibration
• Antenna pattern measurement setups

Antennas RF Procurement Notes

Verify the exact availability status with authorized distributors, as supply conditions may be restricted. Confirm that the CPRG suffix aligns with specific procurement requirements or contractual agreements before finalizing orders. Ensure compatibility with existing WR-90 waveguide infrastructure.

Antennas RF Selection Notes

Select this model when a fixed-gain reference antenna is required for the X-band spectrum. The UG-135/U flange ensures mechanical compatibility with standard waveguide components. Consider the bulk packaging format for integration into larger assembly processes.

Antennas RF Part Context

This part is categorized under directional antennas and specifically falls within the WR-90 waveguide product line. It serves as a passive RF component providing predictable radiation characteristics for high-frequency signal transmission and reception tasks.

Antennas RF Replacement Considerations

Consult official documentation for confirmed substitute part numbers. Generic waveguide horns may not match the specific gain tolerance or flange specifications required for precision applications.
