PEANMOB1004-NM

Antennas RF Overview

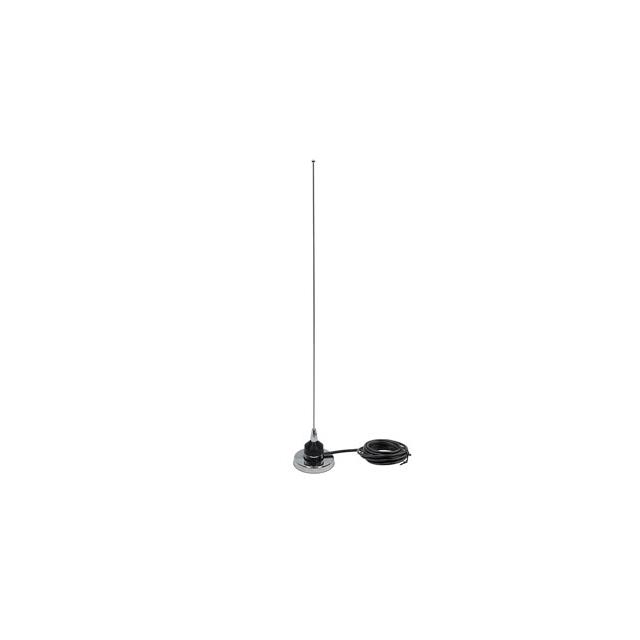

The PEANMOB1004-NM is an omni-directional standard series antenna manufactured by Pasternack. It operates within a frequency range of 136 to 940 MHz and provides a nominal gain of 2.5 dBi. The component features an N-Male connector and utilizes a magnetic NMO mount for installation. This single-band antenna is designed for high-performance applications in cellular networks.

Antennas RF Feature Summary

• Omni-directional radiation pattern for consistent coverage
• Magnetic NMO mount for flexible installation
• N-Male connector interface

Antennas RF Applications

• Cellular network infrastructure
• 5G LTE outdoor deployments
• Standard RF communication systems

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against system requirements before procurement. Confirm that the operating frequency range aligns with the intended application spectrum. Ensure compatibility with existing RF cabling and hardware interfaces to prevent integration issues during deployment.

Antennas RF Selection Notes

Select this model when an omni-directional solution is required for frequencies between 136 and 940 MHz. The 2.5 dBi gain offers a balance between signal strength and coverage area. Consider the magnetic NMO mount for temporary or semi-permanent installations where drilling is not feasible.

Antennas RF Part Context

This part belongs to Pasternack's standard series of omni-directional antennas. It is categorized under RF antennas and is distinct from other models in the lineup by its specific frequency range and connector type. The product represents a specialized component for wireless communication infrastructure.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative models based on matching frequency ranges, gain specifications, and connector types if replacement is necessary.
