PEC18DAGN

Headers, Male Pins Overview

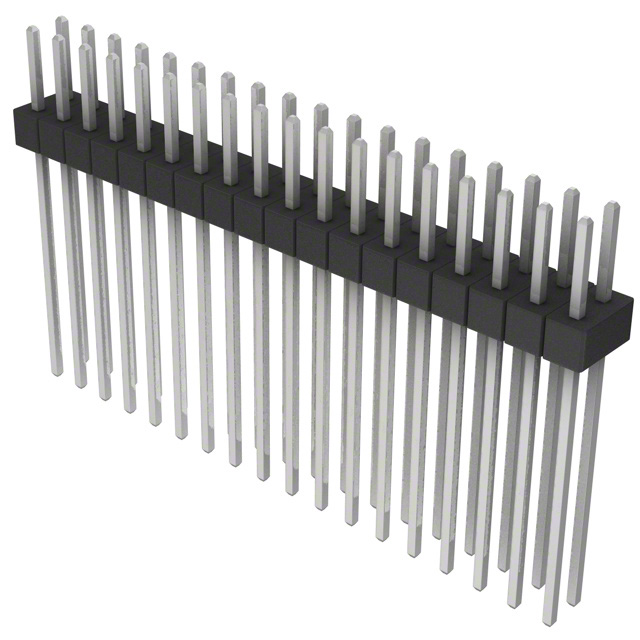

The PEC18DAGN is a male header connector manufactured by Sullins Connector Solutions. It features 36 positions arranged in two rows of 18 contacts each, with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, the unit utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The insulating material is polybutylene terephthalate (PBT), providing structural integrity and thermal stability across an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Dual-row male header configuration designed for board-to-board interconnection
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Gold-plated phosphor bronze contacts provide corrosion resistance and stable electrical conductivity

Headers, Male Pins Applications

• Industrial control systems requiring robust header connections
• Commercial electronic equipment utilizing standard pitch interfaces
• Military and aerospace applications demanding high reliability

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required contact length and flange characteristics. Confirm insulation material compatibility with the assembly process. Ensure the dual-row male configuration aligns with the mating edgecard or female header specifications. Cross-reference the datasheet for precise dimensional tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a male header interface is required for 36-position routing. The 0.100-inch pitch suits standard PCB layouts. Verify that the through-hole installation type fits the manufacturing capabilities. Consider the PBT insulation material for its thermal performance within the specified operating range during design integration.

Headers, Male Pins Part Context

This part belongs to the Sullins Connector Solutions family of edgecards and headers. These components are engineered for mission-critical applications across industrial, commercial, military, and consumer electronics sectors. The manufacturer specializes in providing both standard and custom interconnect solutions tailored for high-reliability environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative connectors based on matching pin count, pitch, and mounting style if substitution is necessary.
