PJE5UFN10A_R1_00001

PJE5UFN10A_R1_00001 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is TVS DIODE 5VWM 13VC DFN251010L. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for PJE5UFN10A_R1_00001

• Description：TVS DIODE 5VWM 13VC DFN251010L
• Series：-
• Mfr：Panjit International Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：13V
• Current - Peak Pulse (10/1000µs)：2.5A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Ethernet, USB
• Capacitance @ Frequency：0.6pF @ 1MHz
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

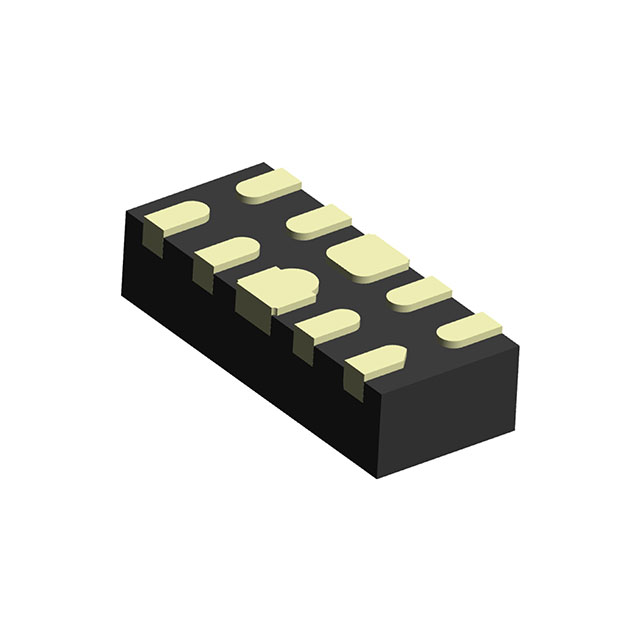

• Package / Case：10-UFDFN
• Supplier Device Package：DFN2510-10L
• Unidirectional Channels：4
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for PJE5UFN10A_R1_00001
