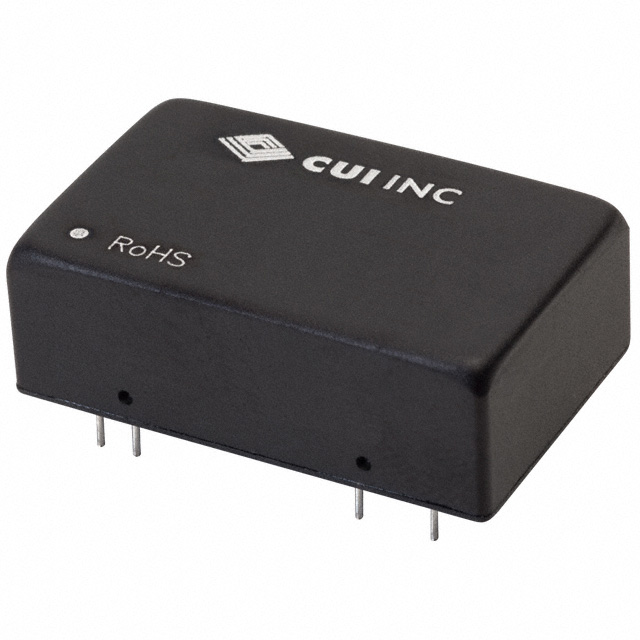

PUZ3-D5-D15-D

PUZ3-D5-D15-D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER +/-15V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PUZ3-D5-D15-D

• Description：DC DC CONVERTER +/-15V 3W
• Series：PUZ3-D (3W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-40°C ~ 105°C
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 8 Leads
• Size / Dimension：1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：EN
• Standard Number：55024; 55032 Class A
• Grade：-
• Qualification：-
