PZC19DFEN

$3.93

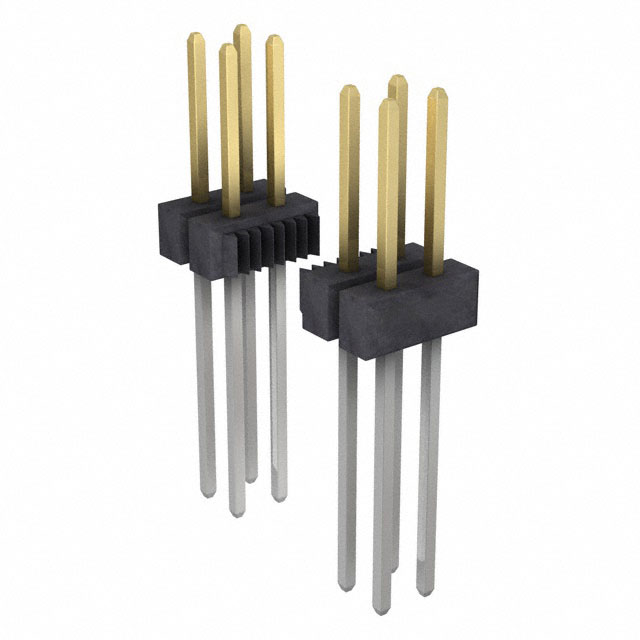

Description：CONN HEADER VERT 38POS 2.54MM
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk

SKU:4df165157784 Category: Headers, Male Pins Brand: Sullins Connector Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PZC19DFEN is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HEADER VERT 38POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for PZC19DFEN

Description：CONN HEADER VERT 38POS 2.54MM
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：38
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：0.520" (13.21mm)
Overall Contact Length：0.938" (23.83mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic, Polyester
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for PZC19DFEN

PZC19DFEN

Headers, Male Pins Overview

PZC19DFEN is a rectangular connector header manufactured by Sullins Connector Solutions. It features 19 positions arranged in a single row with a 0.100 inch (2.54mm) pitch. The component utilizes male pin contacts with a gold finish for reliable signal transmission. Designed for through-hole mounting, it employs a solder termination method to secure the connector to the printed circuit board. The housing is constructed from black insulating material, providing structural integrity and electrical isolation for standard electronic assembly applications.
