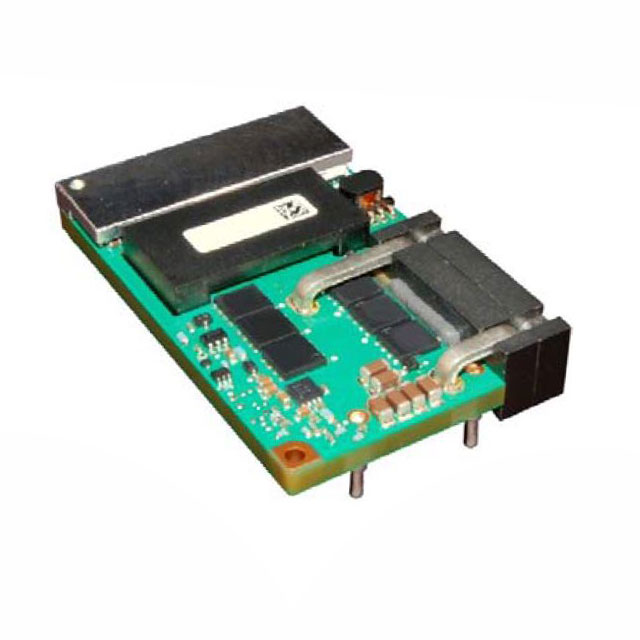

QBVE060A0S10R441-PHZ

QBVE060A0S10R441-PHZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 10.4V 625W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QBVE060A0S10R441-PHZ

• Description：DC DC CONVERTER 10.4V 625W
• Series：Barracuda™ QBVE060A0S (625W)
• Mfr：OmniOn Power™
• Package：Box
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：45V
• Voltage - Input (Max)：56V
• Voltage - Output 1：10.4V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：60A
• Power (Watts)：625 W
• Voltage - Isolation：750 V
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-5°C ~ 85°C
• Efficiency：97%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/4 Brick
• Size / Dimension：2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
