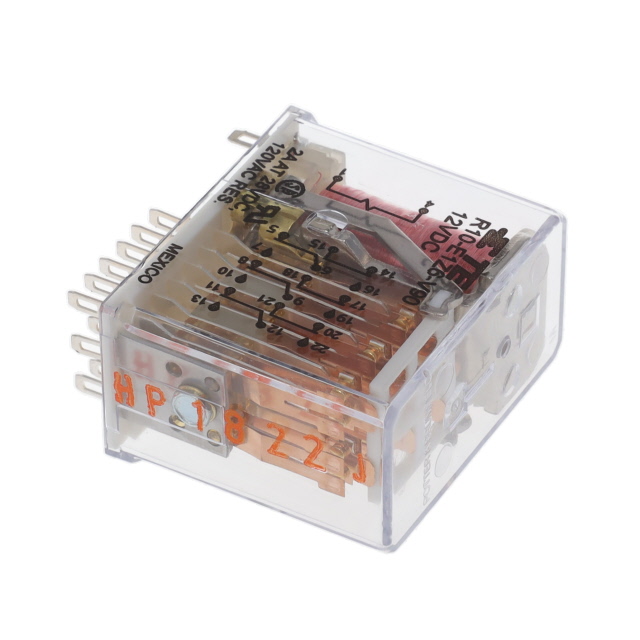

R10-E1Z6-V90

R10-E1Z6-V90 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE 6PDT 2A 12V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for R10-E1Z6-V90

• Description：RELAY GEN PURPOSE 6PDT 2A 12V
• Series：R10
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：12VDC
• Contact Form：6PDT (6 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：120VAC, 30VDC - Max
• Load - Max Switching：240VA, 60W
• Coil Current：-
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：-
• Operate Time：-
• Release Time：-
• Operating Temperature：-55°C ~ 75°C
• Contact Material：Silver (Ag)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for R10-E1Z6-V90
