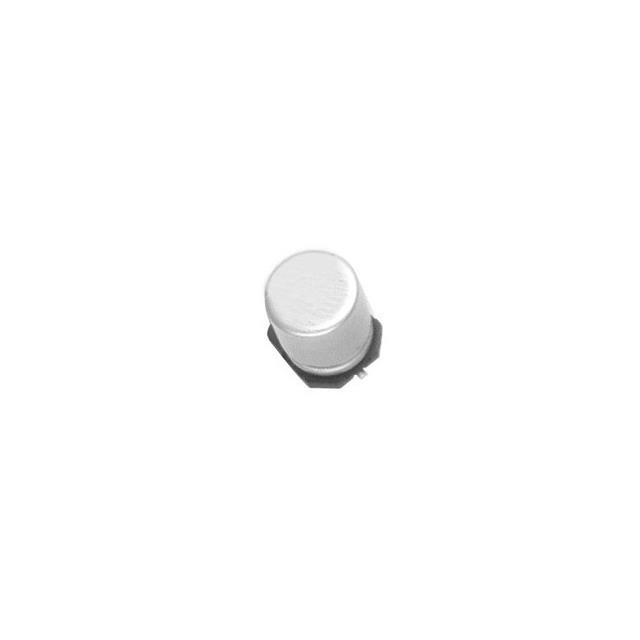

RAVVT220M1GDC8002U

RAVVT220M1GDC8002U is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is CAP ALUM 22UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for RAVVT220M1GDC8002U

• Description：CAP ALUM 22UF 20% 35V SMD
• Series：VVT
• Mfr：Taiyo Yuden
• Package：Tape & Reel (TR)
• Capacitance：22 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：1Ohm @ 100kHz
• Lifetime @ Temp.：1000 Hrs @ 125°C
• Operating Temperature：-40°C ~ 125°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：87.78 mA @ 120 Hz
• Ripple Current @ High Frequency：114 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.240" (6.10mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for RAVVT220M1GDC8002U
