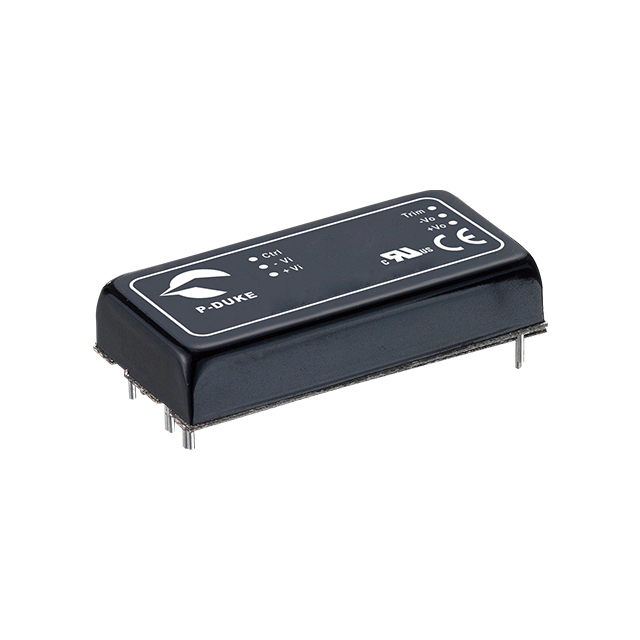

RED40-48S24W

RED40-48S24W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 24V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RED40-48S24W

• Description：DC DC CONVERTER 24V 40W
• Series：RED40W (40W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.666A
• Power (Watts)：40 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for RED40-48S24W
