RFPCA331630IMAB301

Antennas RF Overview

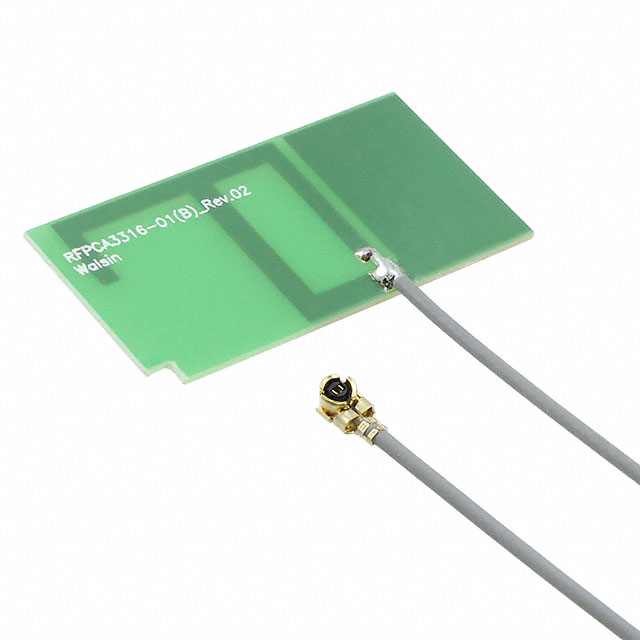

The RFPCA331630IMAB301 is a PCB antenna designed by Walsin Technology Corporation for operation within the 2.4 GHz to 2.5 GHz frequency range, specifically targeting ISM band applications such as Wi-Fi. The component integrates an I-PEX MHF1 connector interface and utilizes adhesive mounting methods for secure attachment to printed circuit boards. This configuration supports reliable signal transmission in compact electronic devices requiring stable wireless connectivity at standard industrial, scientific, and medical frequencies.

Antennas RF Feature Summary

• Designed for 2.4 GHz to 2.5 GHz ISM band operations
• Integrates I-PEX MHF1 connector interface
• Utilizes adhesive mounting method for PCB attachment

Antennas RF Applications

• Wi-Fi application modules
• ISM band wireless communication devices
• Compact electronic equipment requiring 2.4 GHz connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions against the target PCB layout before procurement. Confirm that the I-PEX MHF1 connector mating requirements align with the system design. Ensure the adhesive mounting specifications meet the environmental and thermal constraints of the final assembly process to guarantee long-term reliability.

Antennas RF Selection Notes

Select this component when a dedicated PCB antenna solution is required for the 2.4 GHz to 2.5 GHz spectrum. Consider the integrated I-PEX MHF1 interface if space-constrained designs necessitate direct board-to-board or cable connections without additional adapters. Evaluate the adhesive mounting option for simplified assembly processes compared to through-hole or solder-only alternatives.

Antennas RF Part Context

Walsin Technology Corporation manufactures passive components including antennas, capacitors, and resistors. The RFPCA331630IMAB301 belongs to their RF antenna portfolio, supporting wireless connectivity solutions. This part represents a specialized component for high-frequency applications, distinct from general-purpose passive elements like MLCCs or chip resistors offered by the same manufacturer.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing I-PEX MHF1 interfaces if considering alternative suppliers. Consult official Walsin channels for potential cross-reference recommendations based on specific electrical and mechanical requirements.
