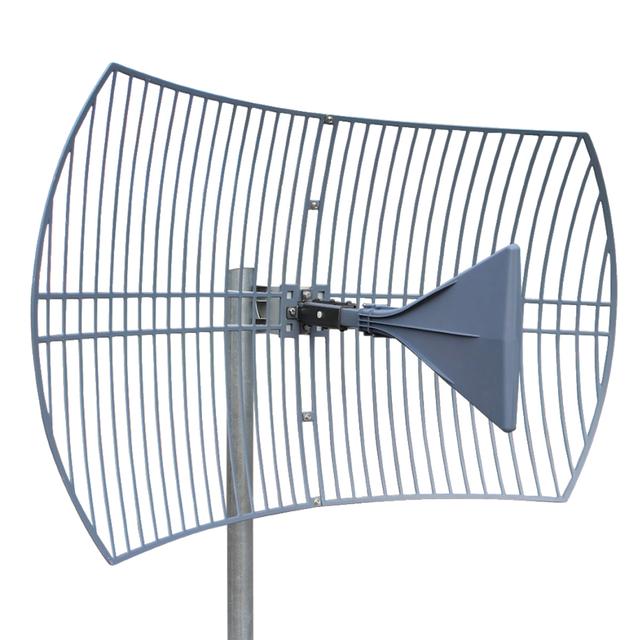

RGP-MBF4-6099-17F-TA-001

$196.56

Description：ANTENNA PARABOLIC 600-6500MHZ
Series：RGP
Mfr：Raltron Electronics
Package：Box

SKU:1f500d05a2f2 Category: RF Antennas Brand: Raltron Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RGP-MBF4-6099-17F-TA-001 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Raltron Electronics. Its product description is ANTENNA PARABOLIC 600-6500MHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RGP-MBF4-6099-17F-TA-001

Description：ANTENNA PARABOLIC 600-6500MHZ
Series：RGP
Mfr：Raltron Electronics
Package：Box
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：752MHz,859MHz,920MHz,1.45GHz,1.575GHz,1.585GHz,1.785GHz,1.92GHz,2.045GHz,2.4GHz,2.495GHz,2.6GHz,3.4GHz,3.55GHz,3.9GHz,5.375GHz,5.45GHz,5.5GHz,5.8GHz,5.8875GHz
Frequency Range：600MHz ~ 6.5GHz
Antenna Type：Parabolic Grid
Number of Bands：20
VSWR：1.4, 1.6
Return Loss：10dB, 20dB
Gain：15dBi, 20dBi, 25dBi
Features：-
Termination：N Type Female
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Pole Mount
Height (Max)：24.000" (609.60mm)
Applications：2G, 3G, 4G, 5G, Cellular, LTE, GSM, WiFi, GNSS, GPS, Beidou, Glonass, Galileo, IMS, LoRa, Sigfox, Zigbee, WCDMA, GPRS, IoT
Power - Max：100 W

Antennas RF datasheet and documents for RGP-MBF4-6099-17F-TA-001

RGP-MBF4-6099-17F-TA-001

Antennas RF Overview

The RGP-MBF4-6099-17F-TA-001 is a parabolic antenna from the Raltron RGP series, designed for wide-band cellular applications. It operates within a frequency range of 600 MHz to 6500 MHz. The component provides variable gain across its spectrum: 15 dBi in the low band, 20 dBi in the mid band, and 25 dBi in the high band. This configuration supports diverse wireless standards including 2G, 3G, 4G, 5G, LTE, GSM, WiFi, GNSS, GPS, Beidou, Glonass, Galileo, IMS, and LoRa.

Antennas RF Feature Summary

Wide-band parabolic design covering 600 MHz to 6500 MHz
Variable gain structure with distinct low, mid, and high band performance levels
Supports multiple cellular and global navigation satellite system standards

Antennas RF Applications

Cellular base station connectivity
GNSS positioning systems
IoT and LoRa network infrastructure

Antennas RF Procurement Notes

Verify the specific part number against official Raltron Electronics documentation to ensure compatibility with required frequency bands and gain specifications. Confirm RoHS and REACH compliance status directly from the manufacturer's datasheet before integration into production designs.

Antennas RF Selection Notes

Select this model when a wide-frequency coverage spanning cellular and GNSS bands is required in a single unit. The parabolic form factor offers higher gain compared to standard omnidirectional antennas, making it suitable for point-to-point or directional link applications where signal strength over distance is critical.

Antennas RF Part Context

This component belongs to the RGP series of parabolic antennas manufactured by Raltron Electronics. The series is characterized by its ability to handle wide bandwidths, allowing a single antenna unit to service multiple communication protocols without requiring separate hardware for each frequency group.
