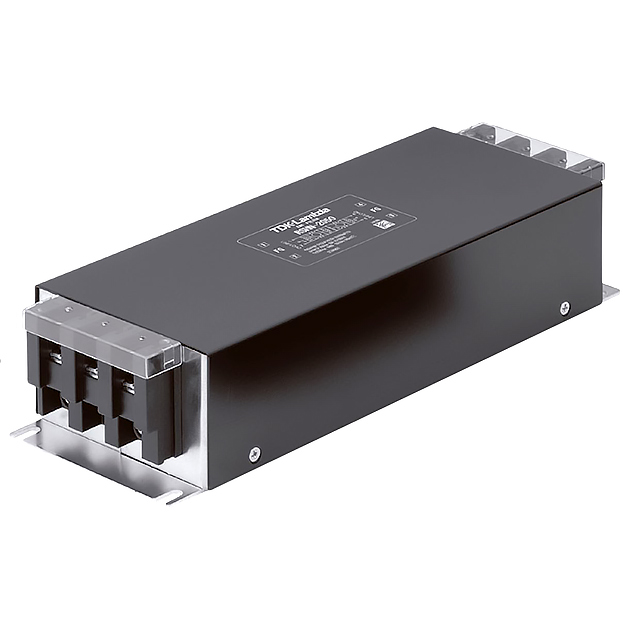

RSHN-2300

$1,629.58

Description：LINE FILTER 250VAC/VDC 300A CHAS
Series：RSHN
Mfr：TDK-Lambda
Package：Bulk

SKU:a28693e3fd32 Category: Power Line Filter Modules Brand: TDK-Lambda

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RSHN-2300 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is LINE FILTER 250VAC/VDC 300A CHAS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for RSHN-2300

Description：LINE FILTER 250VAC/VDC 300A CHAS
Series：RSHN
Mfr：TDK-Lambda
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：250V
Voltage - Rated AC：250V
Current：300 A
Frequency - Operating：-
Applications：General Purpose
Approval Agency：-
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for RSHN-2300

RSHN-2300

Power Line Filter Modules Overview

The RSHN-2300 is a single-phase, two-stage power line filter from the TDK-Lambda RSHN series. It features a rated AC voltage of 250V and a high current rating of 300A. Designed for chassis mounting with screw termination, this EMI filter provides high attenuation to suppress electromagnetic interference in demanding industrial environments.

Power Line Filter Modules Feature Summary

High current handling capability up to 300A
Two-stage filtering configuration for enhanced noise suppression
Robust chassis mount construction with screw terminations

Power Line Filter Modules Applications

Industrial power distribution systems
Heavy machinery control panels
High-current DC/AC power supply inputs

Power Line Filter Modules Procurement Notes

Verify that the required current rating does not exceed 300A and the operating voltage remains within the 250VAC limit. Confirm chassis mounting compatibility and ensure screw termination specifications match the installation hardware. Check for specific certification requirements relevant to the target region.

Power Line Filter Modules Selection Notes

Select this model when high current capacity is critical. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure adequate clearance for chassis mounting and verify that the thermal environment supports continuous operation at full load.

Power Line Filter Modules Part Context

Part of the RSHN series, which covers currents from 3A to 300A. This series focuses on high-performance EMI suppression for industrial applications requiring robust filtering solutions.

Power Line Filter Modules Replacement Considerations

Check datasheets for alternative models in the RSHN series with lower current ratings if the application allows. Verify mechanical dimensions and terminal types for direct replacement compatibility.
