RTHB-5060

Power Line Filter Modules Overview

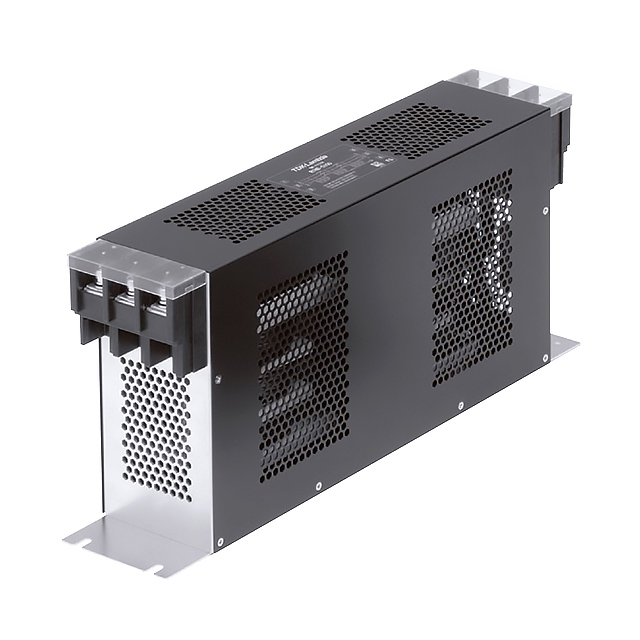

The RTHB-5060 is a three-phase (Delta) EMC/EMI power line filter module manufactured by TDK-Lambda. It supports a voltage rating of 500V DC/VAC and handles a current capacity of 60A. The unit utilizes a two-stage terminal block termination style for secure electrical connections. Designed for chassis mounting, this component provides robust interference suppression in industrial power distribution systems.

Power Line Filter Modules Feature Summary

• Three-phase Delta configuration for balanced load applications
• Two-stage terminal block termination for reliable connection integrity
• Chassis mount design for integration into control panels

Power Line Filter Modules Applications

• Industrial motor drive systems
• Power distribution units
• Heavy machinery control cabinets

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm insulation resistance values and leakage current specifications prior to integration. Ensure the mounting hardware matches the chassis requirements. Confirm that the terminal block torque specifications are adhered to during installation to maintain safety certifications and long-term reliability under high current loads.

Power Line Filter Modules Selection Notes

Select this model when three-phase Delta filtering is required for currents up to 60A at 500V. Consider the physical dimensions and thermal management needs associated with chassis-mounted modules. Evaluate the need for two-stage terminals versus other termination styles based on existing panel wiring infrastructure and maintenance accessibility requirements.

Power Line Filter Modules Part Context

This component belongs to the RTHB series of power line filters from TDK-Lambda. The series focuses on providing EMI/RFI suppression for industrial environments. These filters are engineered to meet stringent electromagnetic compatibility standards while maintaining durability in harsh operating conditions typical of manufacturing and automation sectors.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available.
