S163303-48.000-X-R

Oscillators Overview

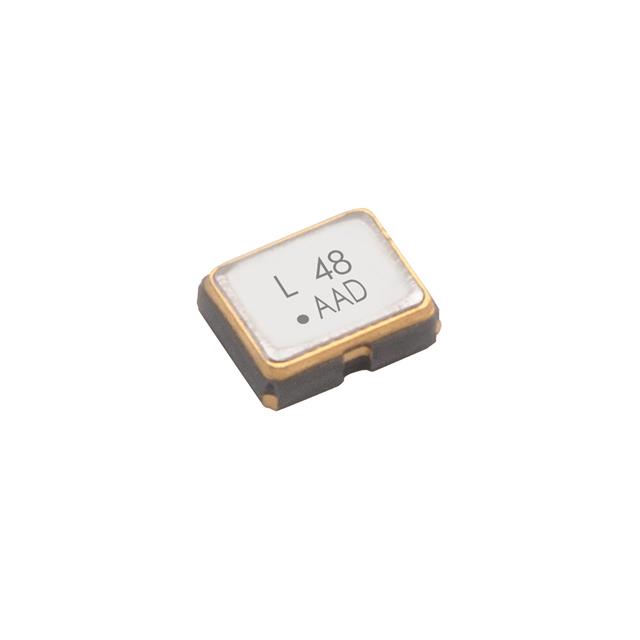

The S163303-48.000-X-R is a surface-mount crystal oscillator manufactured by Aker Technology Corp. It operates at a nominal frequency of 48.000 MHz with a standard CMOS output waveform. The device supports supply voltages ranging from 1.8V to 3.3V and features a 4-pin Ultra Mini-CSMD package measuring 5mm in length, 3.2mm in width, and 0.95mm in height. It offers a frequency stability of ±50 ppm and functions within an operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Provides stable 48 MHz timing signals via CMOS output interface
• Operates on low voltage supplies between 1.8V and 3.3V
• Designed for compact surface-mount integration in space-constrained applications

Oscillators Applications

• General-purpose digital circuit clock generation
• Embedded system timing synchronization
• Consumer electronics internal clock sources

Oscillators Procurement Notes

Verify the specific datasheet revision and electrical characteristics against the manufacturer's official documentation before integration. Confirm that the 4-pin SMD footprint matches the target PCB layout dimensions. Ensure supply voltage requirements align with the system design constraints. Check for RoHS compliance status if required by project specifications.

Oscillators Selection Notes

Select this component when a 48 MHz reference signal is required for CMOS-compatible logic circuits. Consider the ±50 ppm stability specification relative to system jitter tolerance. Evaluate the 1.8V to 3.3V operating range against available power rails. Assess the physical package size against available board real estate.

Oscillators Part Context

Aker Technology Corp specializes in quartz-based frequency control products, including oscillators and crystals. This model belongs to their standard XO line, designed for general electronic markets. The company maintains ISO9001:2015 certification and focuses on precision timing solutions for global electronics manufacturing.

Oscillators Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify pinout compatibility and electrical parameters such as voltage range and output type before substitution.
