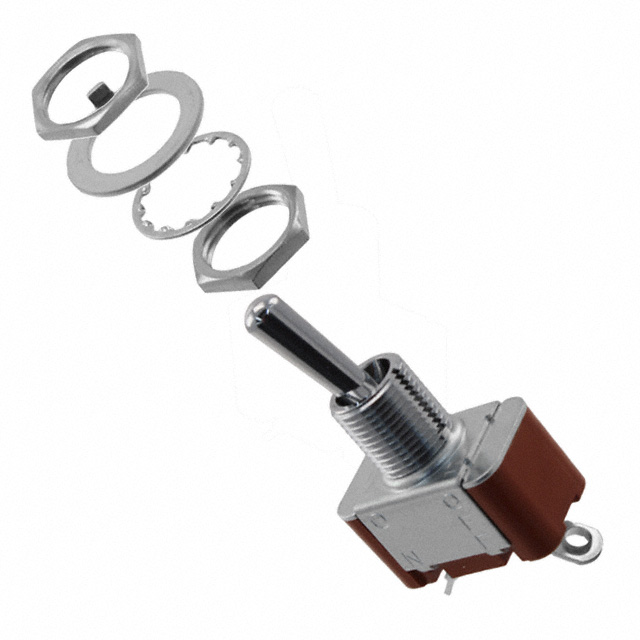

Toggle Switches S301 product image

S301

$7.04
  • Description：SWITCH TOGGLE SPST 15A 125V
  • Series：S300
  • Mfr：NKK Switches
  • Package：Bulk

SKU:3e51a3981d61 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

S301 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SPST 15A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for S301

  • Description：SWITCH TOGGLE SPST 15A 125V
  • Series：S300
  • Mfr：NKK Switches
  • Package：Bulk
  • Mounting Type：Panel Mount
  • Circuit：SPST
  • Switch Function：On-Off
  • Current Rating (Amps)：15A (AC), 20A (DC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：30 V
  • Actuator Type：Standard Round
  • Actuator Length：17.50mm
  • Illumination：Non-Illuminated
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder Lug
  • Panel Cutout Dimensions：Circular - 12.50mm Dia
  • Bushing Thread：M12 x 1
  • Ingress Protection：-
  • Features：-
  • Operating Temperature：-10°C ~ 70°C

Toggle Switches datasheet and documents for S301

S301
