S34ML04G204BHI010

Memory IC Overview

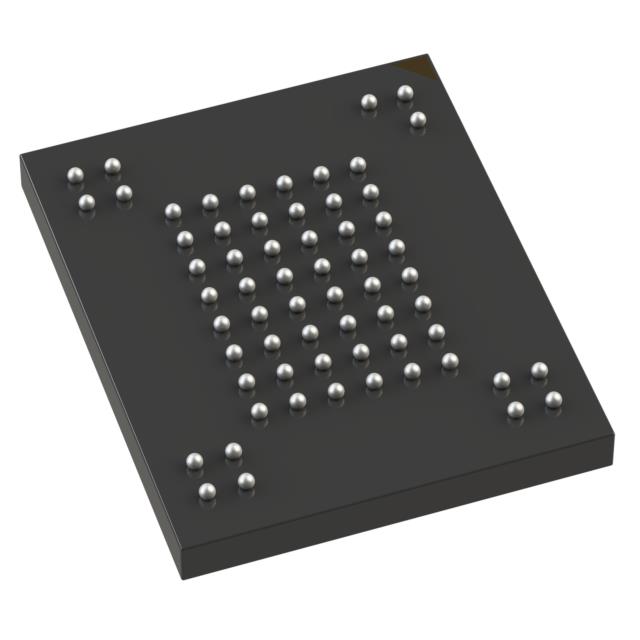

The S34ML04G204BHI010 is a 4 Gb (512 Mbyte) embedded NAND flash memory featuring an x8 I/O interface and ONFI 1.0 compliance. It operates on a single 3.3 V supply with a voltage range of 2.7 V to 3.6 V. The device utilizes a 63-ball BGA package measuring 9 mm by 11 mm with a height of 1 mm. It supports industrial temperature ranges from -40 °C to +85 °C.

Memory IC Feature Summary

• Supports multiplane program and erase operations for improved throughput
• Includes hardware program/erase disable during power transitions
• Features one-time programmable area for security applications
• Complies with Open NAND Flash Interface (ONFI) 1.0 standard

Memory IC Applications

• Embedded storage in consumer electronics
• Industrial control systems requiring wide temperature operation
• Automotive infotainment and telematics units
• Network infrastructure equipment

Memory IC Procurement Notes

Verify the specific ordering suffix against official Infineon or Cypress documentation to confirm package type, temperature grade, and material composition. Ensure compatibility with existing system designs regarding pinout and electrical characteristics before finalizing procurement decisions.

Memory IC Selection Notes

Select this component when a high-density, low-voltage NAND solution with an x8 interface is required. Consider the BGA package constraints and ONFI 1.0 protocol support. Verify that the operating temperature range meets the environmental requirements of the target application.

Memory IC Part Context

This part belongs to the S34ML series of embedded NAND flash memories developed by Cypress Semiconductor, now part of Infineon Technologies. The series provides non-volatile storage solutions optimized for embedded applications requiring reliable data retention and robust performance across various industrial conditions.

Memory IC Replacement Considerations

Consult official datasheets for direct substitutes within the S34ML family. Verify pin compatibility and electrical specifications when considering alternative vendors or newer revisions of the same technology node.
