SB3003CH-TL-W

Single Diodes Overview

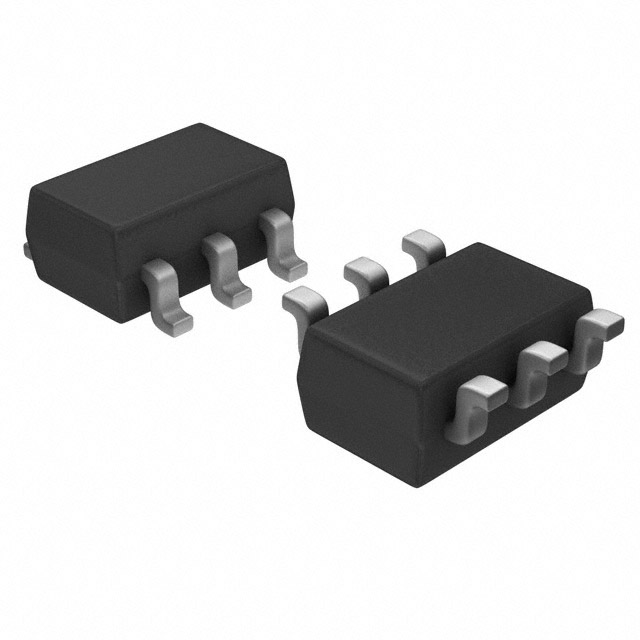

The SB3003CH-TL-W is a Schottky Barrier Diode manufactured by onsemi. It features a low forward voltage drop and low leakage current, achieved through a highly reliable planar structure. The device is designed for high-frequency rectification applications in switching regulators, converters, and choppers. It utilizes an ultrasmall package with a mounting height of 0.9mm to support compact designs.

Single Diodes Feature Summary

• Low switching noise
• Low leakage current
• High reliability due to planar structure
• Ultrasmall package

Single Diodes Applications

• Switching regulators
• Converters
• Choppers

Single Diodes Procurement Notes

Verify the specific suffix TL-W against the manufacturer's official datasheet to confirm tape-and-reel packaging specifications. Ensure compatibility with surface-mount assembly processes. Confirm RoHS compliance status via the manufacturer's material composition declaration before integration into production.

Single Diodes Selection Notes

Select this component for circuits requiring efficient high-frequency rectification with minimal reverse leakage. The planar construction offers improved reliability compared to older technologies. Consider the small footprint when designing space-constrained PCB layouts for power management modules.

Single Diodes Part Context

This part belongs to the SB3003CH series of Schottky Barrier Diodes from onsemi. It is functionally equivalent to other variants within the same family, such as the SB3003CH-TL-E, differing primarily in packaging or reel configuration rather than electrical characteristics.

Single Diodes Replacement Considerations

Cross-reference with SB3003CH-TL-E for identical electrical performance. Verify pinout and thermal requirements against alternative Schottky diodes from other manufacturers if supply constraints exist.
