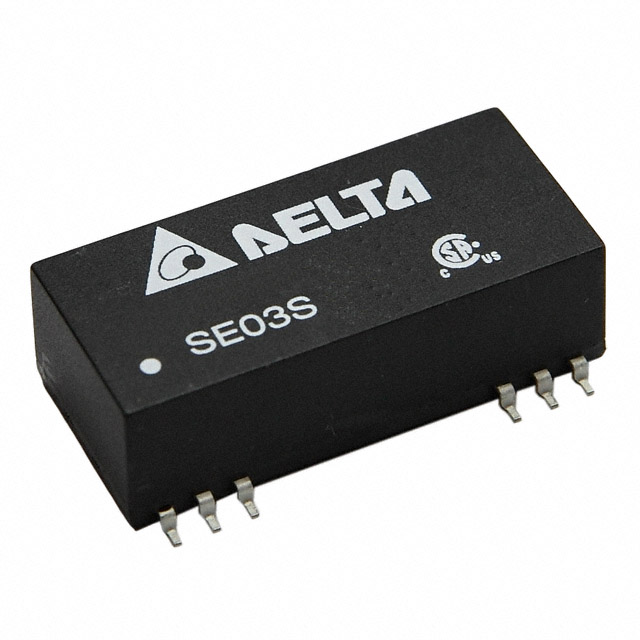

SE03S2405A

SE03S2405A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Delta Electronics. Its product description is DC DC CONVERTER 5V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SE03S2405A

• Description：DC DC CONVERTER 5V 3W
• Series：SE03S/D (3W)
• Mfr：Delta Electronics
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：Medical
• Features：SCP, UVLO
• Operating Temperature：-40°C ~ 71°C
• Efficiency：80%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 12 Leads
• Size / Dimension：1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SE03S2405A
