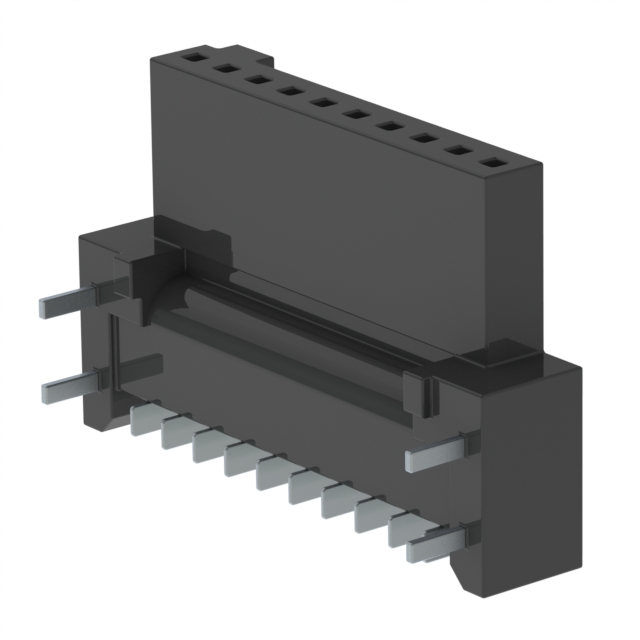

SFM-110-02-S-SH-TR

SFM-110-02-S-SH-TR is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 10P 0.05 GOLD SMD R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for SFM-110-02-S-SH-TR

• Description：CONN RCPT 10P 0.05 GOLD SMD R/A
• Series：Tiger Eye™ SFM
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：10
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.133" (3.38mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：3.2A per Contact
• Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for SFM-110-02-S-SH-TR
