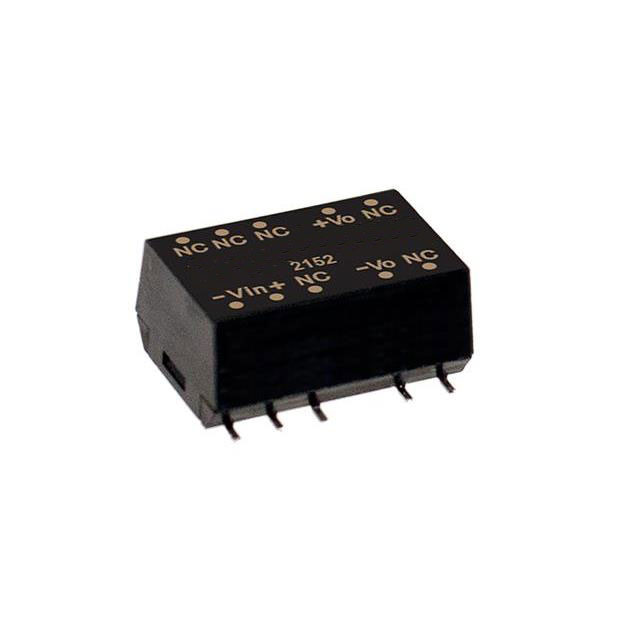

SFTN02M-15N

SFTN02M-15N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SFTN02M-15N

• Description：DC DC CONVERTER 15V 2W
• Series：SFTN02-N (2W)
• Mfr：MEAN WELL USA Inc.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：133mA
• Power (Watts)：1.995 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83%
• Mounting Type：Surface Mount
• Package / Case：12-SMD Module, 10 Leads
• Size / Dimension：0.60" L x 0.43" W x 0.36" H (15.2mm x 10.9mm x 9.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-
