SL 10 SMD 062 4 S B TR

Headers, Male Pins Overview

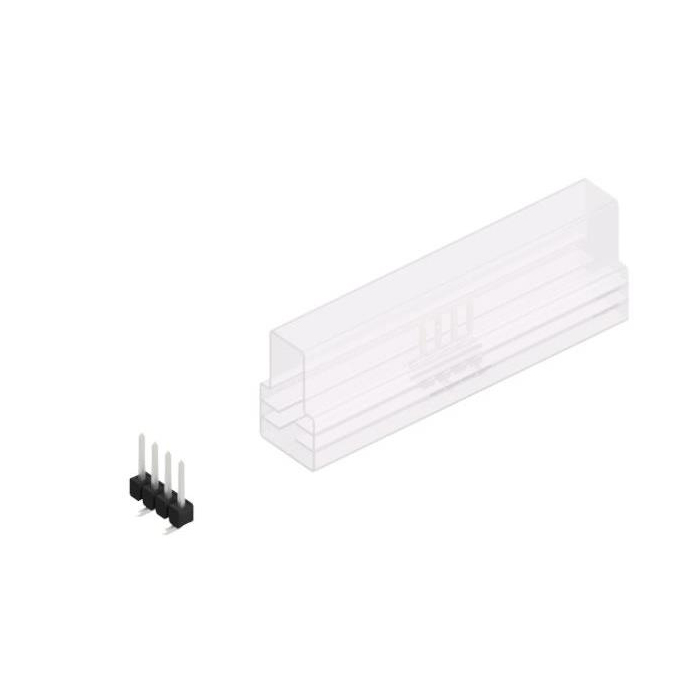

The SL 10 SMD 062 4 S B TR is a surface mount board connector from Fischer Elektronik, featuring 4 male contacts in a single row with a 2.54 mm pitch. It utilizes a CuSn-alloy contact material with selective gold plating on the mating interface and tin plating on the termination side. Designed for pick-and-place assembly, it is supplied in tape and reel packaging containing 250 pieces per reel. The unit operates within a temperature range of -40°C to +163°C and supports reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Surface mount design optimized for automated pick-and-place manufacturing processes
• Selective plating configuration with gold-plated mating contacts and tin-plated terminations
• Single-row male header construction with standard 2.54 mm spacing

Headers, Male Pins Applications

• Automated surface mount technology (SMT) production lines
• High-density electronic circuit board interconnections
• Consumer electronics assemblies requiring reliable signal routing

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'B TR' corresponds to the tape and reel packaging format containing 250 pieces per reel as documented for this series. Confirm that the 'S' designation indicates selective gold plating on the contact tips while the termination sides remain tin-plated. Ensure the order quantity aligns with the reel count requirements for your production volume. Cross-reference the part number against official Fischer Elektronik documentation to confirm availability and exact physical dimensions before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB mounting without through-hole drilling. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating connectors. Choose the tape and reel option to facilitate high-volume automated assembly. Verify that the operating temperature range meets the environmental specifications of the final application. Consider the selective plating benefits for corrosion resistance and conductivity in the mating zone.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD family of surface mount headers from Fischer Elektronik. The series offers various contact counts ranging from 4 to 20 positions. Different suffixes indicate variations in packaging, such as bar magazines or tape and reels. The SL 10 variant specifically denotes a single-row configuration, distinguishing it from multi-row options like the SL 11 series.

Headers, Male Pins Replacement Considerations

Direct substitutes include other SL 10 SMD variants with identical pitch and row count but different contact numbers, such as SL 10 SMD 062 8 S B TR. Ensure any replacement maintains the same surface mount footprint and electrical characteristics. Verify that alternative sources offer compatible packaging formats for existing assembly equipment.
